0447691001

0447691001

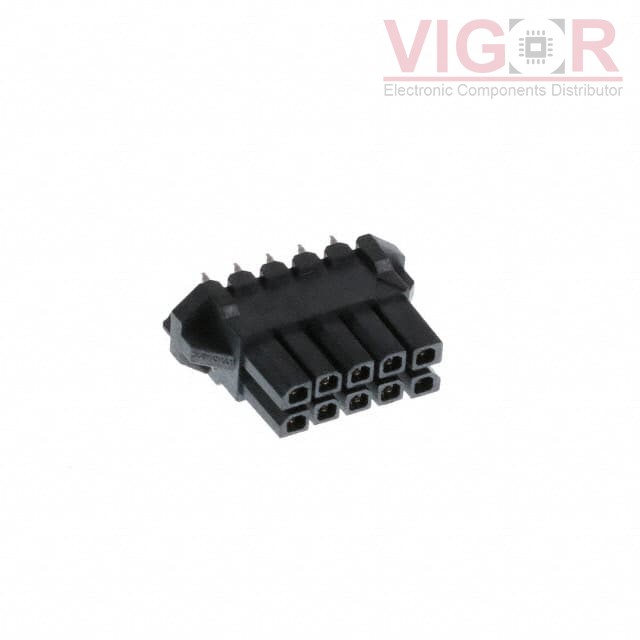

Image is for reference,
please contact us to get the real picture

Part No :

0447691001

Manufacturer
Woodhead - Molex
Description
CONN RCPT 10POS 0.118 TIN PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Oct 22 - Oct 26 2025
DataSheet
0447691001 PDF
Availability
567 pieces
Unit Price
$3.33000

Current price of 0447691001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0447691001 Specifications
Type Description
Series:Micro-Fit 3.0 BMI 44769
Package:Tray
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:10
Number of Positions Loaded:All
Pitch - Mating:0.118" (3.00mm)
Number of Rows:2
Row Spacing - Mating:0.118" (3.00mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Insulation Color:Black
Insulation Height:0.535" (13.60mm)
Contact Length - Post:0.134" (3.40mm)
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:16.86mm
Ingress Protection:-
Features:Board Guide
Current Rating (Amps):5A
Voltage Rating:250VAC
