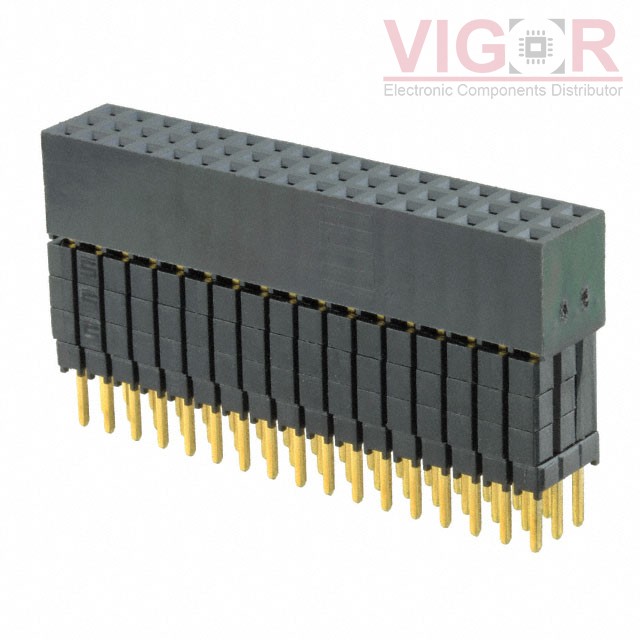

| Type | Description |
|---|---|
| Series: | ESQ |
| Package: | Tube |
| Part Status: | Active |
| Connector Type: | Elevated Socket |
| Contact Type: | Forked |
| Style: | Board to Board |
| Number of Positions: | 51 |
| Number of Positions Loaded: | All |
| Pitch - Mating: | 0.100" (2.54mm) |
| Number of Rows: | 3 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | 20.0µin (0.51µm) |
| Insulation Color: | Black |
| Insulation Height: | 0.735" (18.67mm) |
| Contact Length - Post: | 0.180" (4.57mm) |
| Operating Temperature: | -55°C ~ 125°C |
| Material Flammability Rating: | UL94 V-0 |
| Contact Finish - Post: | Gold |
| Mated Stacking Heights: | - |
| Ingress Protection: | - |
| Features: | - |
| Current Rating (Amps): | 5.7A per Contact |
| Voltage Rating: | 550VAC |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 10 | ||
| 100 | ||
| 500 | ||
| 1000 |
Current price of ESQ-117-69-G-T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
