M20-7821646

Part No :: M20-7821646

Manufacturer: Harwin

VIGOR # :: 3130707

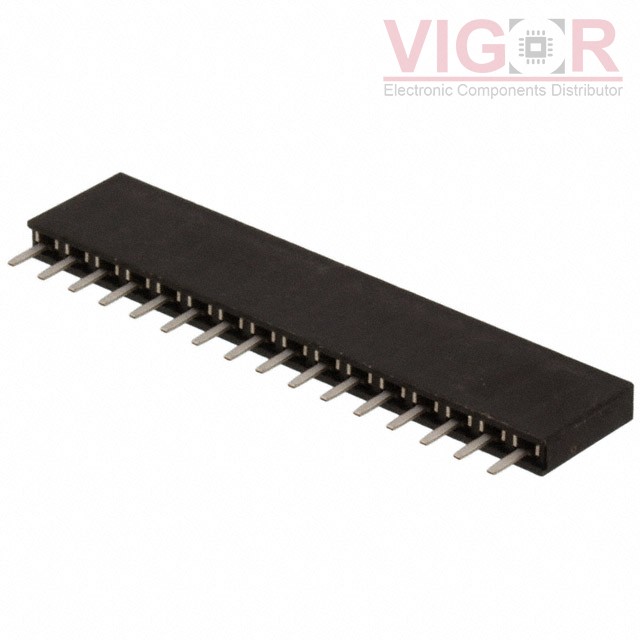

Description: CONN RCPT 16POS 0.1 TIN PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: M20-7821646 PDF

Country of origin: -

Date code: -

M20-7821646 Specifications

Type	Description
Series:	M20
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board or Cable
Number of Positions:	16
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Insulation Color:	Black
Insulation Height:	0.335" (8.51mm)
Contact Length - Post:	0.118" (3.00mm)
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	11.04mm, 12.63mm
Ingress Protection:	-
Features:	-
Current Rating (Amps):	3A
Voltage Rating:	1000V
