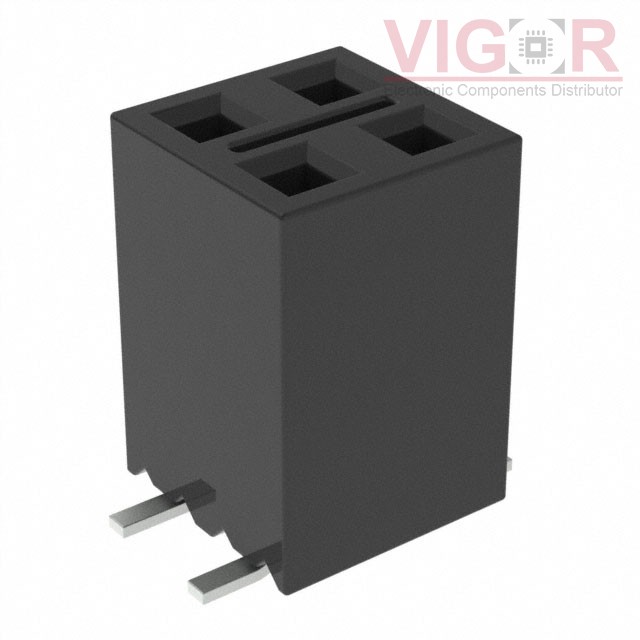

| Type | Description |
|---|---|
| Series: | SSM |
| Package: | Tape & Reel (TR) |
| Part Status: | Active |
| Connector Type: | Receptacle, Bottom Entry |
| Contact Type: | Female Socket |
| Style: | Board to Board or Cable |
| Number of Positions: | 4 |
| Number of Positions Loaded: | All |
| Pitch - Mating: | 0.100" (2.54mm) |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.100" (2.54mm) |
| Mounting Type: | Surface Mount |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | 30.0µin (0.76µm) |
| Insulation Color: | Black |
| Insulation Height: | 0.290" (7.37mm) |
| Contact Length - Post: | - |
| Operating Temperature: | -55°C ~ 125°C |
| Material Flammability Rating: | - |
| Contact Finish - Post: | Tin |
| Mated Stacking Heights: | - |
| Ingress Protection: | - |
| Features: | Pick and Place |
| Current Rating (Amps): | 5.2A per Contact |
| Voltage Rating: | 405VAC, 572VDC |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 125 |
Current price of SSM-102-S-DV-BE-P-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
