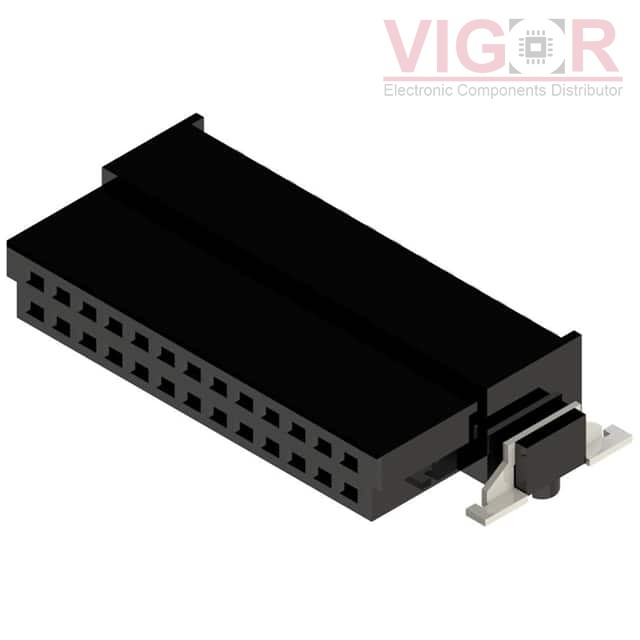

SHS-506-D-02-RA-T-LF

Part No :: SHS-506-D-02-RA-T-LF

Manufacturer: Major League Electronics

VIGOR # :: 3131596

Description: SHROUDED FEMALE CONNECTOR

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: SHS-506-D-02-RA-T-LF PDF

Country of origin: -

Date code: -

SHS-506-D-02-RA-T-LF Specifications

Type	Description
Series:	SHS-5-RA
Package:	Bulk
Part Status:	Active
Connector Type:	Socket
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	12
Number of Positions Loaded:	All
Pitch - Mating:	0.050" (1.27mm)
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Insulation Color:	-
Insulation Height:	0.162" (4.12mm)
Contact Length - Post:	-
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Board Guide, Solder Retention
Current Rating (Amps):	0.8A per Contact
Voltage Rating:	-
