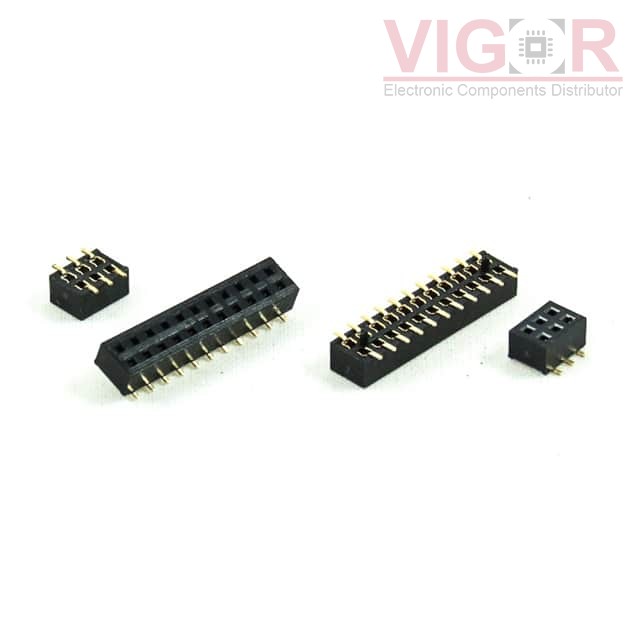

2248-A2X10G00DPU

Image is for reference,
please contact us to get the real picture

Part No :: 2248-A2X10G00DPU

Manufacturer: Oupiin

Description: PCB SOCKET, DOUBLE ROW, 20 PIN,

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: 2248-A2X10G00DPU PDF

Availability: 0 pieces

Unit Price: ~~$1.42000~~

Current price of 2248-A2X10G00DPU is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2248-A2X10G00DPU Specifications

Type	Description
Series:	2248
Package:	Tube
Part Status:	Active
Connector Type:	Socket
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	20
Number of Positions Loaded:	All
Pitch - Mating:	0.050" (1.27mm)
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Insulation Color:	-
Insulation Height:	0.085" (2.15mm)
Contact Length - Post:	-
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Gold
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Board Guide
Current Rating (Amps):	1A
Voltage Rating:	-
