SSM-103-F-DV-LC

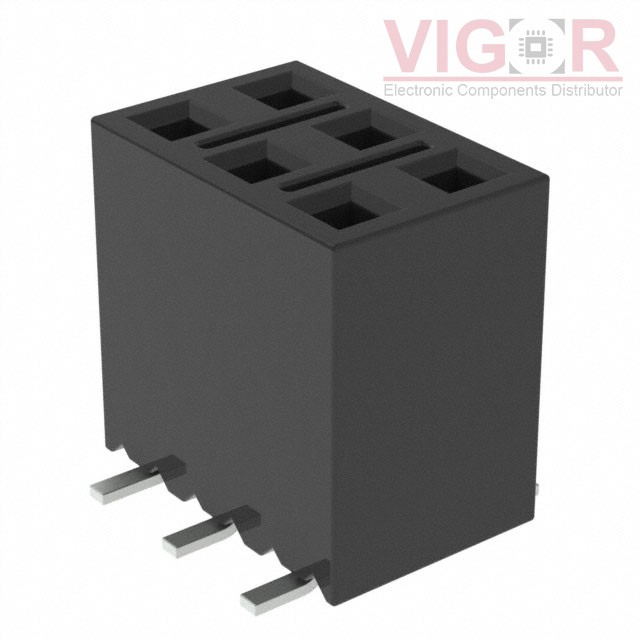

Image is for reference,
please contact us to get the real picture

Part No :: SSM-103-F-DV-LC

Manufacturer: Samtec, Inc.

Description: CONN RCPT 6POS 0.1 GOLD SMD

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: SSM-103-F-DV-LC PDF

Availability: 208 pieces

Unit Price: ~~$2.02000~~

Current price of SSM-103-F-DV-LC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SSM-103-F-DV-LC Specifications

Type	Description
Series:	SSM
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle, Pass Through
Contact Type:	Female Socket
Style:	Board to Board or Cable
Number of Positions:	6
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	3.00µin (0.076µm)
Insulation Color:	Black
Insulation Height:	0.290" (7.37mm)
Contact Length - Post:	-
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	-
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Board Lock
Current Rating (Amps):	5.2A per Contact
Voltage Rating:	405VAC, 572VDC
