CLM-104-02-F-D-PA

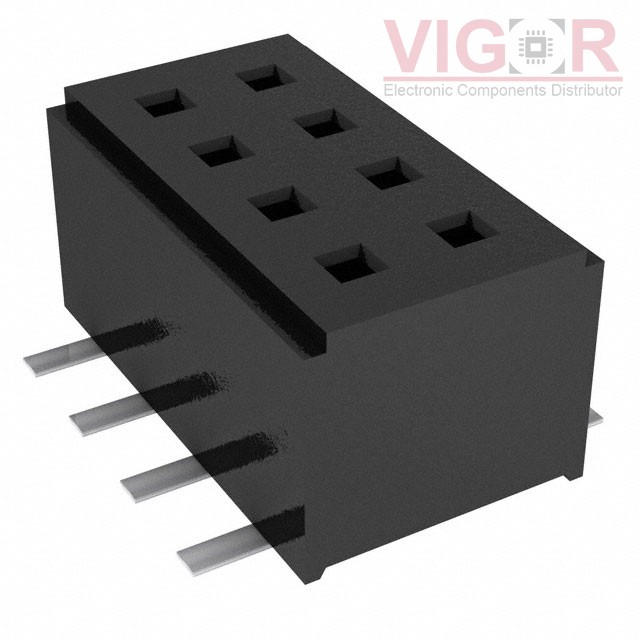

Image is for reference,
please contact us to get the real picture

Part No :: CLM-104-02-F-D-PA

Manufacturer: Samtec, Inc.

Description: CONN RCPT 8POS 0.039 GOLD SMD

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: CLM-104-02-F-D-PA PDF

Availability: 123 pieces

Unit Price: ~~$2.85000~~

Current price of CLM-104-02-F-D-PA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CLM-104-02-F-D-PA Specifications

Type	Description
Series:	CLM
Package:	Tray
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	8
Number of Positions Loaded:	All
Pitch - Mating:	0.039" (1.00mm)
Number of Rows:	2
Row Spacing - Mating:	0.039" (1.00mm)
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	3.00µin (0.076µm)
Insulation Color:	Black
Insulation Height:	0.084" (2.14mm)
Contact Length - Post:	-
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Pick and Place
Current Rating (Amps):	2.8A per Contact
Voltage Rating:	-
