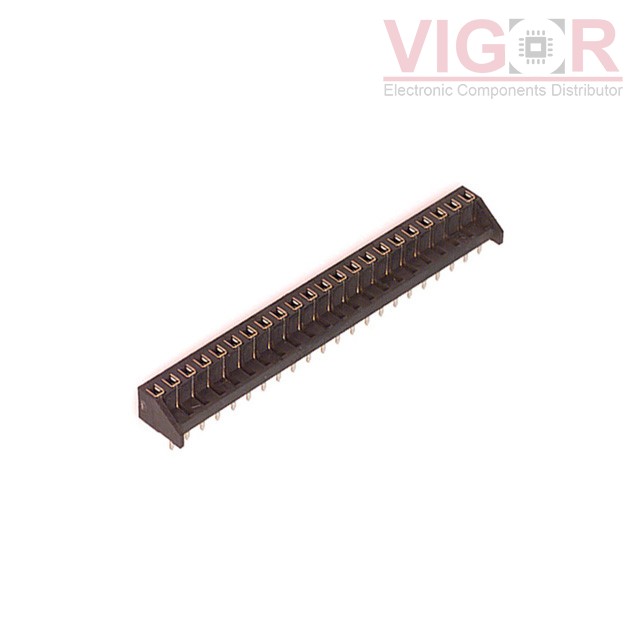

MDF7-22S-2.54DSA(55)

Part No :: MDF7-22S-2.54DSA(55)

Manufacturer: Hirose

Description: CONN RCPT 22POS 0.1 TIN PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: MDF7-22S-2.54DSA(55) PDF

Availability: 0 pieces

Unit Price: ~~$1.51200~~

Current price of MDF7-22S-2.54DSA(55) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MDF7-22S-2.54DSA(55) Specifications

Type	Description
Series:	MDF7
Package:	Bulk
Part Status:	Last Time Buy
Connector Type:	Receptacle, Bottom Entry
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	22
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	78.7µin (2.00µm)
Insulation Color:	Black
Insulation Height:	0.197" (5.00mm)
Contact Length - Post:	0.118" (3.00mm)
Operating Temperature:	-35°C ~ 85°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	3A
Voltage Rating:	250VAC
