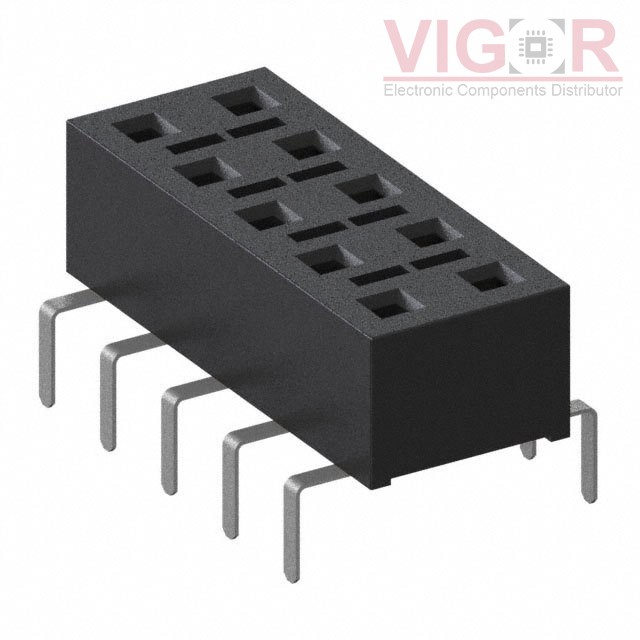

HLE-105-02-L-DV-PE-BE-TR

Part No :: HLE-105-02-L-DV-PE-BE-TR

Manufacturer: Samtec, Inc.

Description: CONN RCPT 10POS 0.1 GOLD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: HLE-105-02-L-DV-PE-BE-TR PDF

Availability: 0 pieces

Unit Price: ~~$2.70680~~

Current price of HLE-105-02-L-DV-PE-BE-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HLE-105-02-L-DV-PE-BE-TR Specifications

Type	Description
Series:	HLE
Package:	Tape & Reel (TR)
Part Status:	Active
Connector Type:	Receptacle, Bottom Entry, Pass Through
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	10
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Insulation Color:	Black
Insulation Height:	0.138" (3.50mm)
Contact Length - Post:	0.090" (2.29mm)
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	-
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	4.1A per Contact
Voltage Rating:	400VAC
