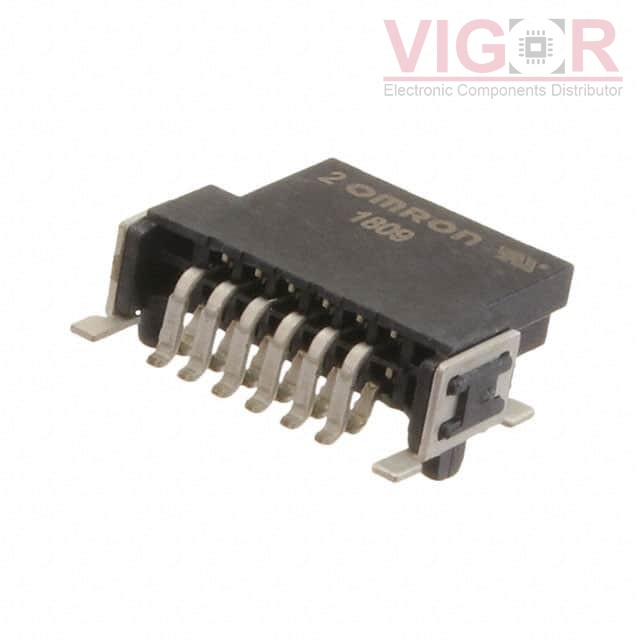

XH5F-1215-N

Part No :: XH5F-1215-N

Manufacturer: Omron Electronics Components

Description: SOCKET, RIGHT-ANGLE, SMT PINS

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: XH5F-1215-N PDF

Availability: 9 pieces

Unit Price: ~~$3.84000~~

Current price of XH5F-1215-N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

XH5F-1215-N Specifications

Type	Description
Series:	XH5-N
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Socket
Contact Type:	Female Socket
Style:	Board to Board or Cable
Number of Positions:	12
Number of Positions Loaded:	All
Pitch - Mating:	0.050" (1.27mm)
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	-
Insulation Color:	Black
Insulation Height:	0.146" (3.70mm)
Contact Length - Post:	-
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Board Guide, Solder Retention
Current Rating (Amps):	1A
Voltage Rating:	100VAC

Please confirm the specifications of the products when ordering.
