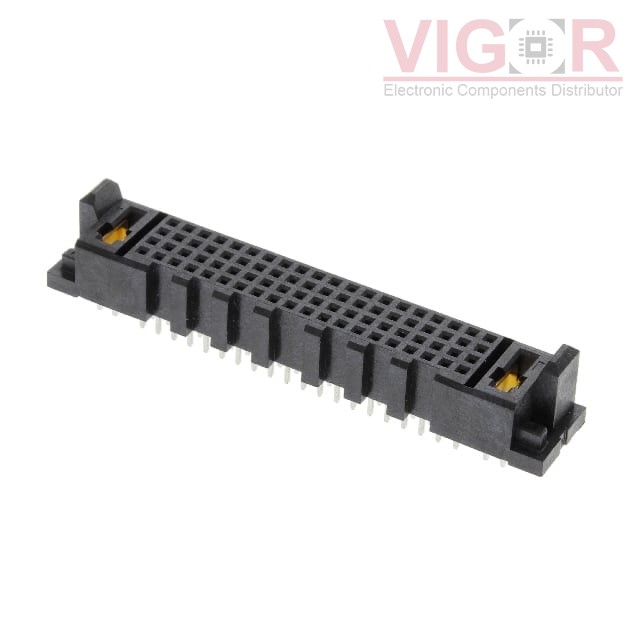

MPSC-01-80-01-7.70-01-L-V

Part No :: MPSC-01-80-01-7.70-01-L-V

Manufacturer: Samtec, Inc.

Description: CONN RCPT 82POS GOLD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: MPSC-01-80-01-7.70-01-L-V PDF

Availability: 1 pieces

Current price of MPSC-01-80-01-7.70-01-L-V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MPSC-01-80-01-7.70-01-L-V Specifications

Type	Description
Series:	PowerStrip™ 30 MPSC
Package:	Tray
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Forked
Style:	Board to Board
Number of Positions:	82 (80 + 2 Power)
Number of Positions Loaded:	All
Pitch - Mating:	-
Number of Rows:	4
Row Spacing - Mating:	0.079" (2.00mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Insulation Color:	Black
Insulation Height:	0.298" (7.57mm)
Contact Length - Post:	0.107" (2.71mm)
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	-
Voltage Rating:	-
