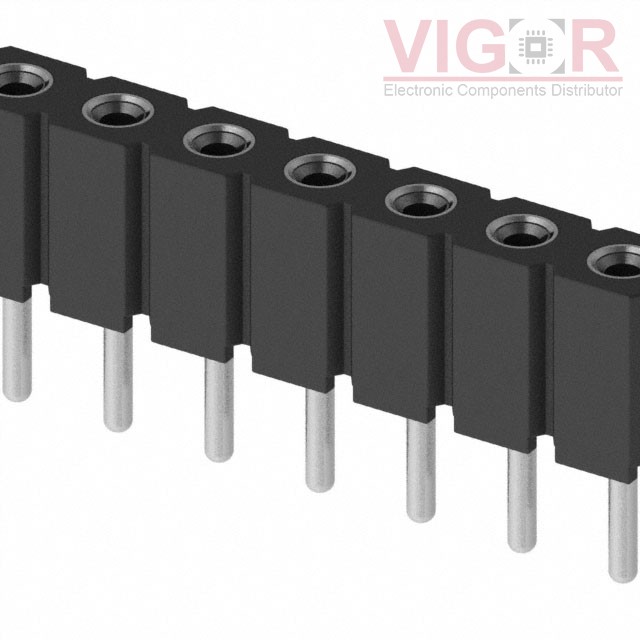

801-99-036-10-012000

Part No :: 801-99-036-10-012000

Manufacturer: Mill-Max

VIGOR # :: 3133334

Description: SOCKET INTRCONN LOWPRO SIP 36POS

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: 801-99-036-10-012000 PDF

Country of origin: -

Date code: -

801-99-036-10-012000 Specifications

Type	Description
Series:	801
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	36
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Tin-Lead
Contact Finish Thickness - Mating:	200.0µin (5.08µm)
Insulation Color:	Black
Insulation Height:	0.165" (4.20mm)
Contact Length - Post:	0.125" (3.18mm)
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin-Lead
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	4.5A
Voltage Rating:	-
