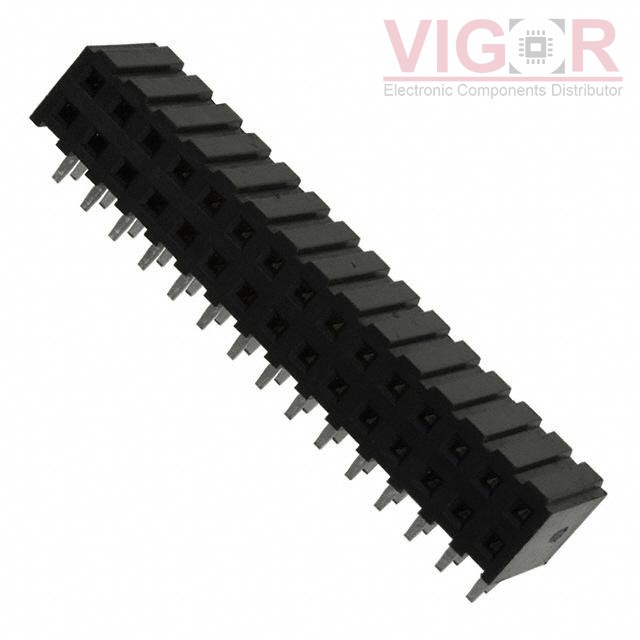

950430-5002-AR

Part No :: 950430-5002-AR

Manufacturer: 3M

VIGOR # :: 3133363

Description: CONN RCPT 30P 0.079 GOLD PCB R/A

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: 950430-5002-AR PDF

Country of origin: -

Date code: -

950430-5002-AR Specifications

Type	Description
Series:	950
Package:	Tube
Part Status:	Obsolete
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	30
Number of Positions Loaded:	All
Pitch - Mating:	0.079" (2.00mm)
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Insulation Color:	Black
Insulation Height:	0.191" (4.85mm)
Contact Length - Post:	0.118" (3.00mm)
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	1A
Voltage Rating:	1000VDC
