0009483125

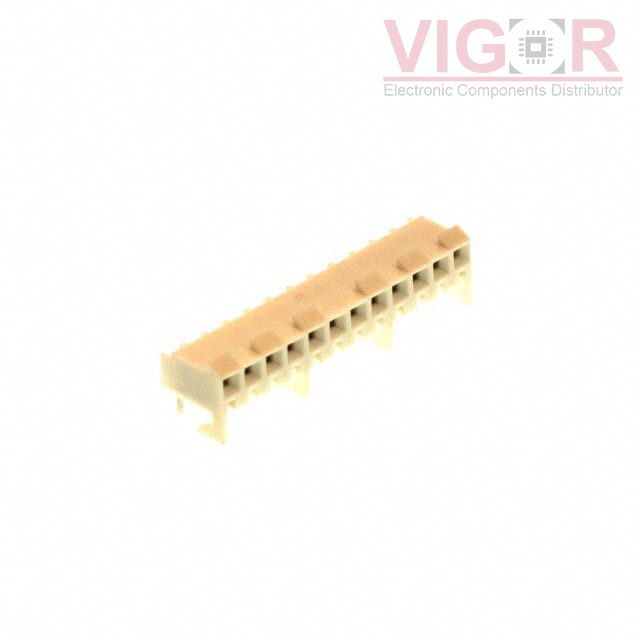

Image is for reference,
please contact us to get the real picture

Part No :

0009483125

Manufacturer
Woodhead - Molex
Description
CONN RCPT 12P 0.156 GOLD EDGE MT
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Oct 23 - Oct 27 2025
DataSheet
0009483125 PDF
Availability
640 pieces
Unit Price
$3.21000

Current price of 0009483125 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:KK396, 41815
Package:Tray
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:12
Number of Positions Loaded:All
Pitch - Mating:0.156" (3.96mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Board Edge, Through Hole, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Insulation Color:Natural
Insulation Height:0.308" (7.82mm)
Contact Length - Post:0.145" (3.68mm)
Operating Temperature:-40°C ~ 80°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Board Hooks
Current Rating (Amps):4.5A
Voltage Rating:600V
