5-147105-8

5-147105-8

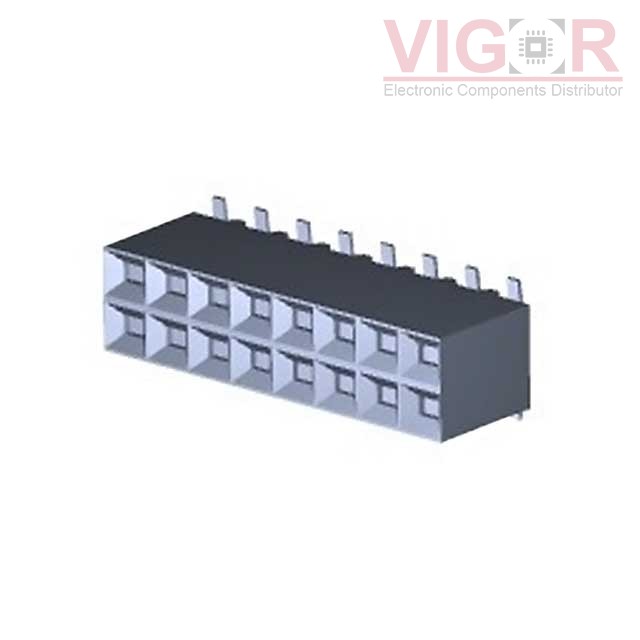

Image is for reference,
please contact us to get the real picture

Part No :

5-147105-8

Manufacturer
TE Connectivity AMP Connectors
Description
CONN RCPT 16POS 0.1 GOLD SMD
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Oct 25 - Oct 29 2025
DataSheet
5-147105-8 PDF
Availability
0 pieces
Unit Price
$1.90400

Current price of 5-147105-8 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5-147105-8 Specifications
Type Description
Series:AMPMODU Mod IV
Package:Tape & Reel (TR)
Part Status:Active
Connector Type:Receptacle, Bottom or Top Entry
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:16
Number of Positions Loaded:All
Pitch - Mating:0.100" (2.54mm)
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Black
Insulation Height:0.265" (6.73mm)
Contact Length - Post:-
Operating Temperature:-65°C ~ 125°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Pick and Place
Current Rating (Amps):2A
Voltage Rating:-
