SMM-109-02-L-S-P

SMM-109-02-L-S-P

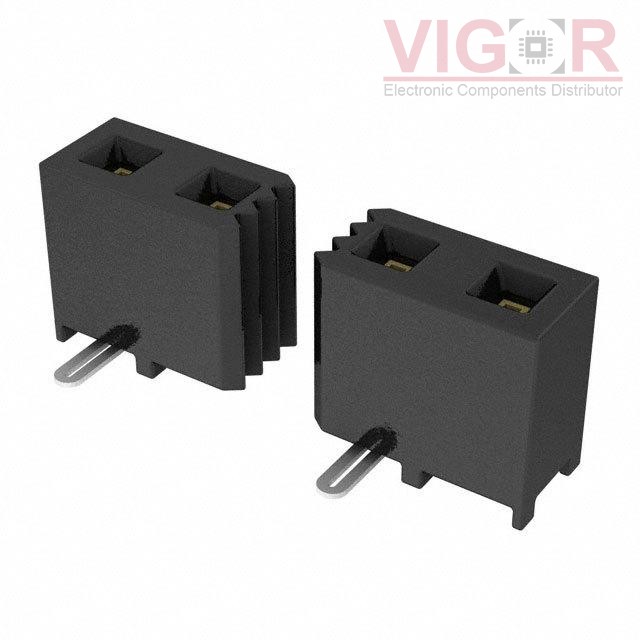

Image is for reference,
please contact us to get the real picture

Part No :

SMM-109-02-L-S-P

Manufacturer
Samtec, Inc.
Description
CONN RCPT 9POS 0.079 GOLD SMD
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Oct 25 - Oct 29 2025
DataSheet
SMM-109-02-L-S-P PDF
Availability
0 pieces
Unit Price
$3.86000

Current price of SMM-109-02-L-S-P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMM-109-02-L-S-P Specifications
Type Description
Series:Tiger Eye™ SMM
Package:Bulk
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:9
Number of Positions Loaded:All
Pitch - Mating:0.079" (2.00mm)
Number of Rows:1
Row Spacing - Mating:-
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Insulation Color:Black
Insulation Height:0.140" (3.56mm)
Contact Length - Post:-
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:Pick and Place
Current Rating (Amps):3.2A per Contact
Voltage Rating:350VAC
