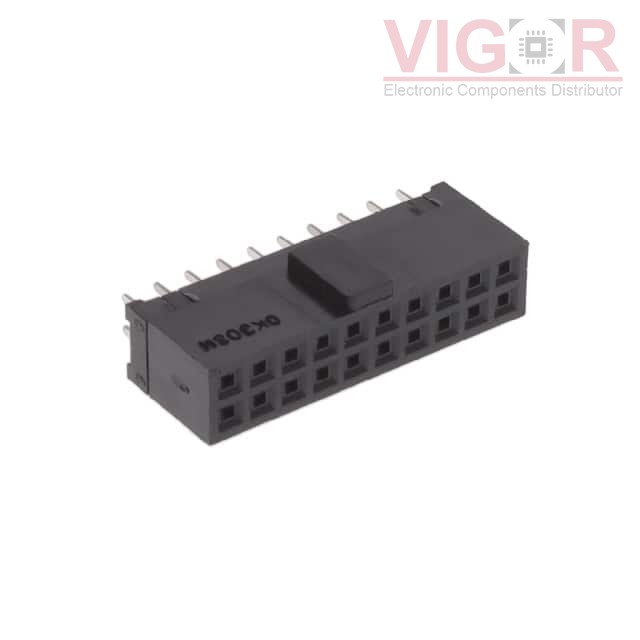

HIF3HA-20DA-2.54DSA(61)

Part No :: HIF3HA-20DA-2.54DSA(61)

Manufacturer: Hirose

Description: CONN RCPT 20POS 0.1 GOLD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: HIF3HA-20DA-2.54DSA(61) PDF

Availability: 70 pieces

Unit Price: ~~$4.67000~~

Current price of HIF3HA-20DA-2.54DSA(61) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

HIF3HA-20DA-2.54DSA(61) Specifications

Type	Description
Series:	HIF3H
Package:	Tray
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Cable/Wire
Number of Positions:	20
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	8.00µin (0.203µm)
Insulation Color:	Black
Insulation Height:	0.374" (9.50mm)
Contact Length - Post:	0.118" (3.00mm)
Operating Temperature:	-55°C ~ 85°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	3A
Voltage Rating:	300VAC
