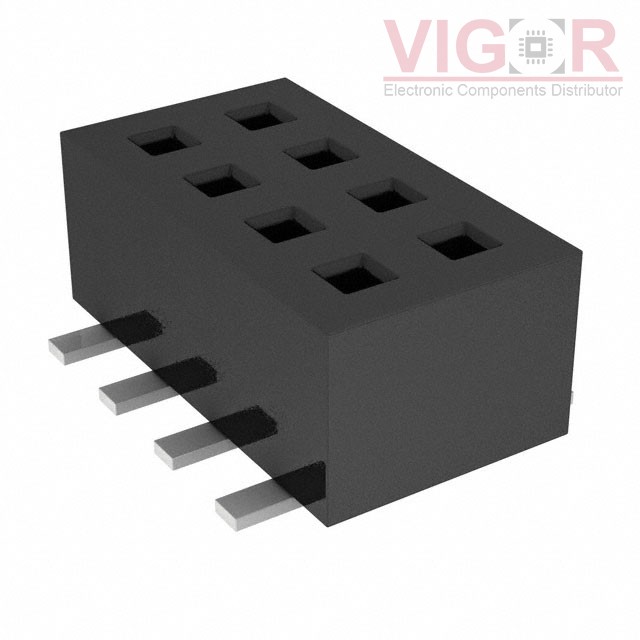

CLP-104-02-F-D-TR

Part No :: CLP-104-02-F-D-TR

Manufacturer: Samtec, Inc.

VIGOR # :: 3140587

Description: CONN RCPT 8POS 0.05 GOLD SMD

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: CLP-104-02-F-D-TR PDF

Current price of CLP-104-02-F-D-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CLP-104-02-F-D-TR Specifications

Type	Description
Series:	CLP
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	8
Number of Positions Loaded:	All
Pitch - Mating:	0.050" (1.27mm)
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	3.00µin (0.076µm)
Insulation Color:	Black
Insulation Height:	0.084" (2.14mm)
Contact Length - Post:	-
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	3.3A per Contact
Voltage Rating:	240VAC, 330VDC

Please confirm the specifications of the products when ordering.
