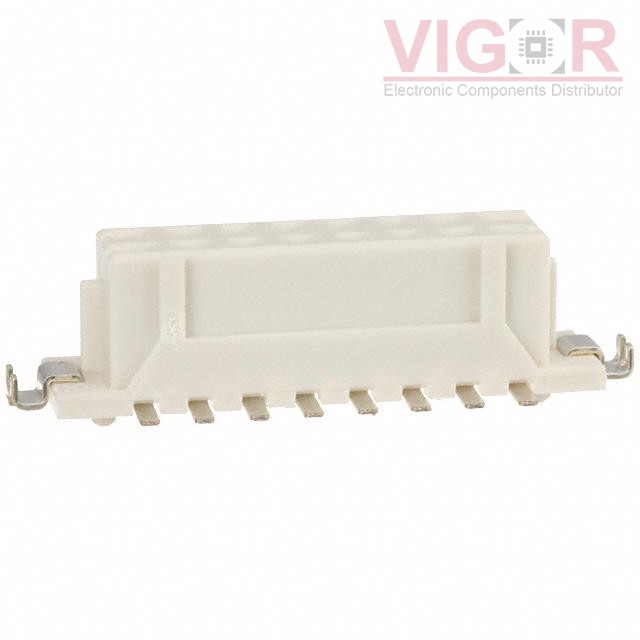

DF11Z-16DS-2V(50)

Part No :: DF11Z-16DS-2V(50)

Manufacturer: Hirose

VIGOR # :: 3140595

Description: CONN RCPT 16POS 0.079 GOLD SMD

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: DF11Z-16DS-2V(50) PDF

Current price of DF11Z-16DS-2V(50) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DF11Z-16DS-2V(50) Specifications

Type	Description
Series:	DF11
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board or Cable
Number of Positions:	16
Number of Positions Loaded:	All
Pitch - Mating:	0.079" (2.00mm)
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Friction Lock
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	8.00µin (0.203µm)
Insulation Color:	Beige
Insulation Height:	0.234" (5.95mm)
Contact Length - Post:	-
Operating Temperature:	-30°C ~ 85°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	7.55mm, 8.2mm
Ingress Protection:	-
Features:	Board Guide, Solder Retention
Current Rating (Amps):	2A
Voltage Rating:	250V
