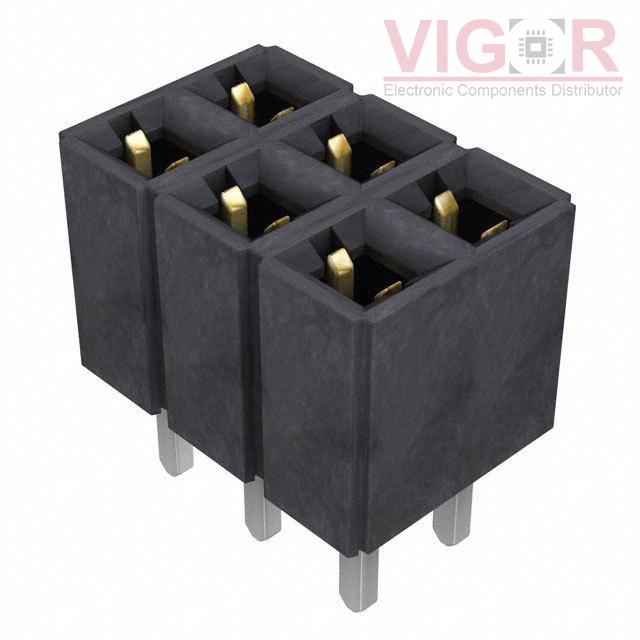

SLW-103-01-F-D

Part No :: SLW-103-01-F-D

Manufacturer: Samtec, Inc.

VIGOR # :: 3140625

Description: CONN RCPT 6POS 0.1 GOLD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: SLW-103-01-F-D PDF

Current price of SLW-103-01-F-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SLW-103-01-F-D Specifications

Type	Description
Series:	SLW
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Forked
Style:	Board to Board
Number of Positions:	6
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	3.00µin (0.076µm)
Insulation Color:	Black
Insulation Height:	0.180" (4.57mm)
Contact Length - Post:	0.115" (2.92mm)
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	-
Contact Finish - Post:	Tin
Mated Stacking Heights:	6.09mm
Ingress Protection:	-
Features:	-
Current Rating (Amps):	-
Voltage Rating:	-
