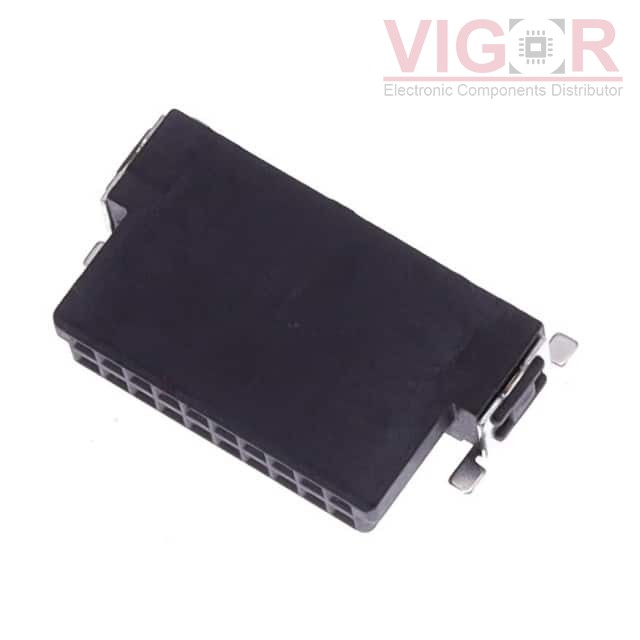

ESMC-F-20-SGR-SMT-T/R

Part No :: ESMC-F-20-SGR-SMT-T/R

Manufacturer: Adam Tech

Description: CONN RCPT R/A SMT 20POS 1.27MM

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: ESMC-F-20-SGR-SMT-T/R PDF

Availability: 697 pieces

Unit Price: ~~$2.05000~~

Current price of ESMC-F-20-SGR-SMT-T/R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ESMC-F-20-SGR-SMT-T/R Specifications

Type	Description
Series:	ESMC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	20
Number of Positions Loaded:	All
Pitch - Mating:	0.050" (1.27mm)
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Insulation Color:	Black
Insulation Height:	0.145" (3.68mm)
Contact Length - Post:	-
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Board Guide, Solder Retention
Current Rating (Amps):	1.2A
Voltage Rating:	-
