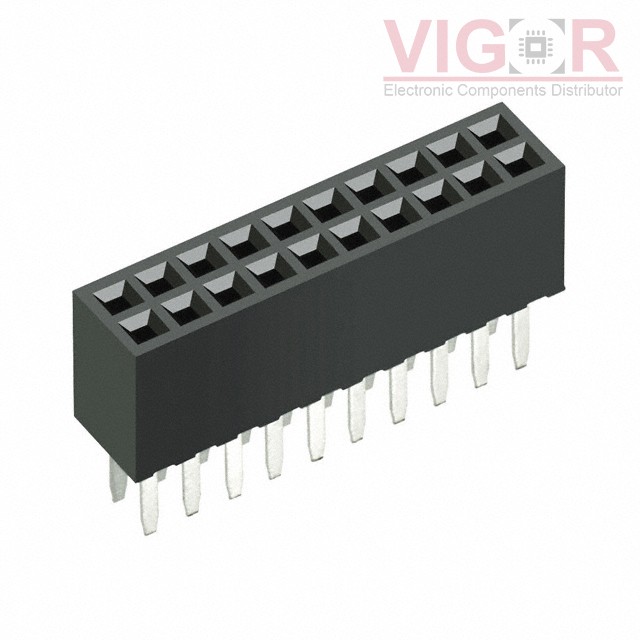

M50-3001045

Product image
Product thumb
Part No :

M50-3001045

Manufacturer
Harwin
VIGOR # :

3141192

Description
CONN RCPT 20POS 0.05 GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
DataSheet
M50-3001045 PDF
Country of origin
-
Date code
-
ads
M50-3001045 Specifications
Type Description
Series:Archer M50
Package:Tube
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:20
Number of Positions Loaded:All
Pitch - Mating:0.050" (1.27mm)
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Insulation Color:Black
Insulation Height:0.173" (4.40mm)
Contact Length - Post:0.094" (2.40mm)
Operating Temperature:-40°C ~ 105°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:-
Mated Stacking Heights:5.4mm, 6.08mm, 9.37mm
Ingress Protection:-
Features:-
Current Rating (Amps):1A
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 529
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $2.5300 $2.53
44 $2.1547 $94.81
132 $1.9673 $259.69
528 $1.6395 $865.64
1012 $1.4053 $1 422.12
5016 $1.2460 $6 249.94

Current price of M50-3001045 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
316-43-122-41-003000

316-43-122-41-003000

CONN SOCKET 22POS 0.1 GOLD PCB

SSW-130-01-T-D

SSW-130-01-T-D

CONN RCPT 60POS 0.1 TIN PCB

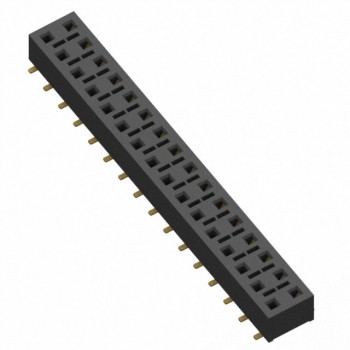

HLE-116-02-G-DV-BE
