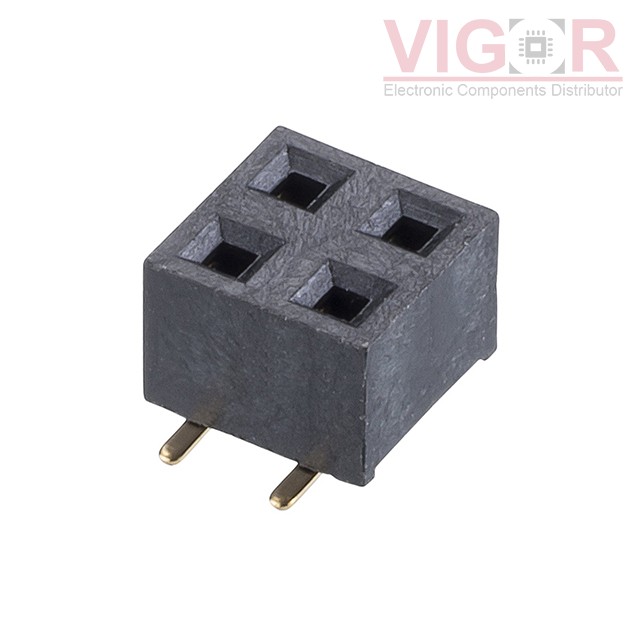

M20-7810245R

Part No :: M20-7810245R

Manufacturer: Harwin

Description: CONN RCPT 4POS 0.1 GOLD SMD

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: M20-7810245R PDF

Availability: 0 pieces

Unit Price: ~~$0.52500~~

Current price of M20-7810245R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

M20-7810245R Specifications

Type	Description
Series:	M20
Package:	Tape & Reel (TR)
Part Status:	Active
Connector Type:	Receptacle, Bottom or Top Entry
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	4
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	0.59µin (0.015µm)
Insulation Color:	Black
Insulation Height:	0.140" (3.56mm)
Contact Length - Post:	-
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Gold
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Board Guide
Current Rating (Amps):	3A
Voltage Rating:	-
