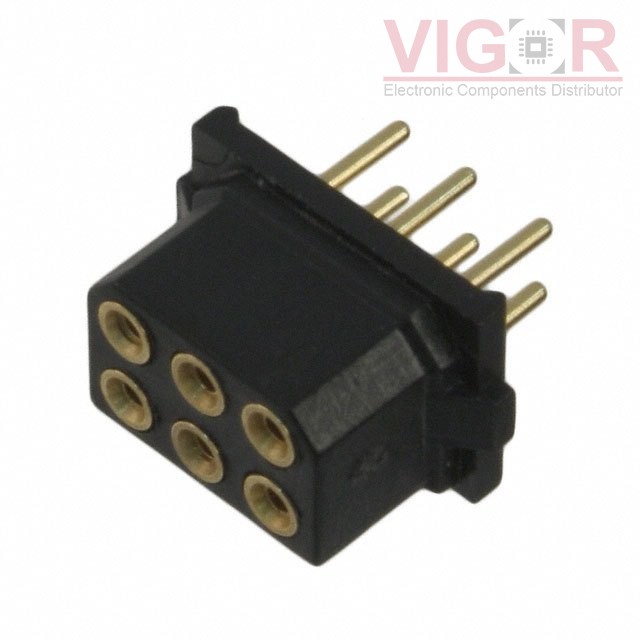

| Type | Description |
|---|---|
| Series: | Datamate L-Tek |
| Package: | Tube |
| Part Status: | Active |
| Connector Type: | Receptacle |
| Contact Type: | Female Socket |
| Style: | Board to Board or Cable |
| Number of Positions: | 6 |
| Number of Positions Loaded: | All |
| Pitch - Mating: | 0.079" (2.00mm) |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.079" (2.00mm) |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Locking Ramp |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | 12.0µin (0.30µm) |
| Insulation Color: | Black |
| Insulation Height: | 0.202" (5.14mm) |
| Contact Length - Post: | 0.118" (3.00mm) |
| Operating Temperature: | -55°C ~ 125°C |
| Material Flammability Rating: | UL94 V-0 |
| Contact Finish - Post: | Tin-Lead |
| Mated Stacking Heights: | 7.23mm, 7.85mm |
| Ingress Protection: | - |
| Features: | - |
| Current Rating (Amps): | - |
| Voltage Rating: | 800V |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 26 | ||
| 104 | ||
| 520 | ||
| 1014 | ||
| 5018 |
Current price of M80-8870601 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
