1-2307816-4

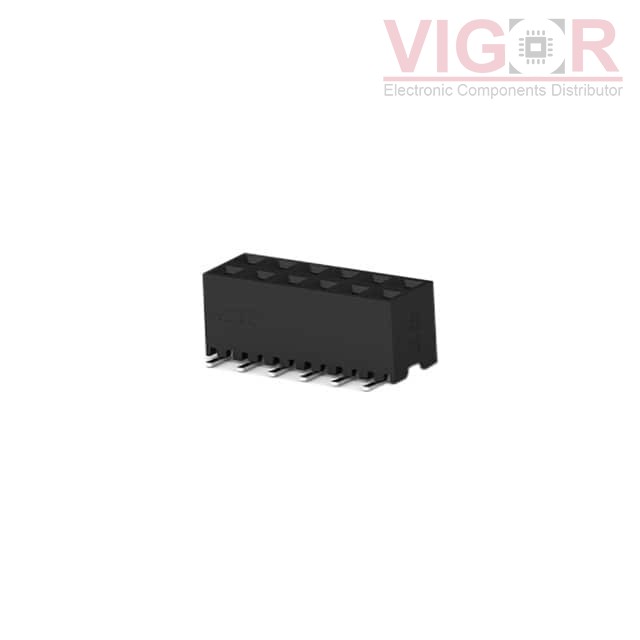

Image is for reference,
please contact us to get the real picture

Part No :: 1-2307816-4

Manufacturer: TE Connectivity AMP Connectors

Description: 14P,2MM,B-B,REC,DRVT,SMD,SN,TR,W

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: 1-2307816-4 PDF

Availability: 2100 pieces

Unit Price: ~~$1.50000~~

Current price of 1-2307816-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

1-2307816-4 Specifications

Type	Description
Series:	AMPMODU
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Receptacle, Bottom or Top Entry
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	14
Number of Positions Loaded:	All
Pitch - Mating:	0.079" (2.00mm)
Number of Rows:	2
Row Spacing - Mating:	0.079" (2.00mm)
Mounting Type:	Surface Mount
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	118.1µin (3.00µm)
Insulation Color:	Black
Insulation Height:	0.177" (4.50mm)
Contact Length - Post:	-
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Pick and Place
Current Rating (Amps):	2A
Voltage Rating:	125V
