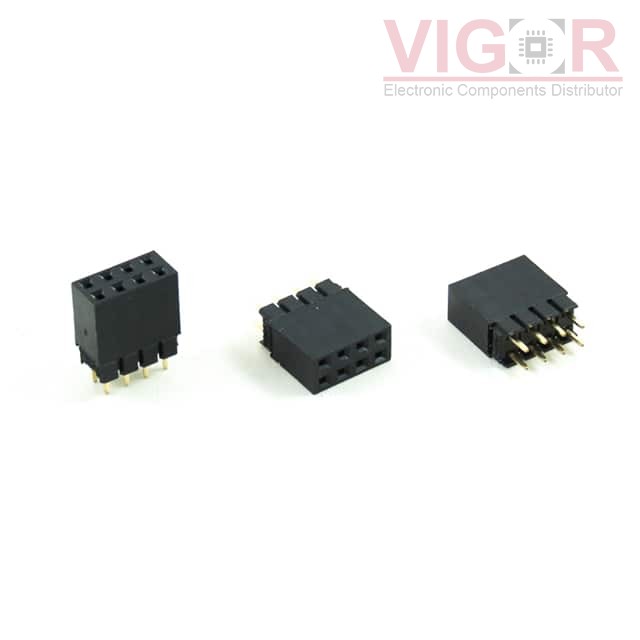

2047-2X20G00S3U

Part No :: 2047-2X20G00S3U

Manufacturer: Oupiin

Description: PCB SOCKET, DOUBLE ROW, 40 PINS,

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: 2047-2X20G00S3U PDF

Availability: 819 pieces

Current price of 2047-2X20G00S3U is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2047-2X20G00S3U Specifications

Type	Description
Series:	2047
Package:	Tube
Part Status:	Active
Connector Type:	Elevated Socket
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	40
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Insulation Color:	Black
Insulation Height:	0.535" (13.59mm)
Contact Length - Post:	0.191" (4.85mm)
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Gold
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	2A
Voltage Rating:	-
