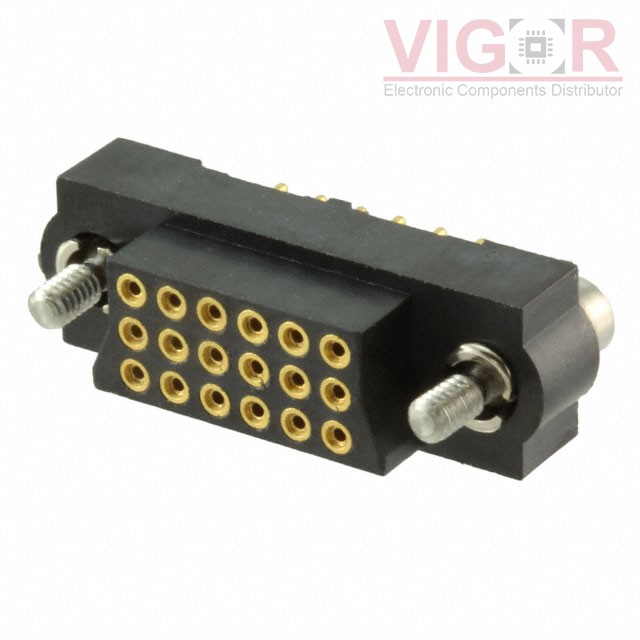

M83-LFT1F2N18-0000-000

Part No :: M83-LFT1F2N18-0000-000

Manufacturer: Harwin

Description: CONN RCPT 18POS 0.079 GOLD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: M83-LFT1F2N18-0000-000 PDF

Availability: 60 pieces

Unit Price: ~~$20.11000~~

Current price of M83-LFT1F2N18-0000-000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

M83-LFT1F2N18-0000-000 Specifications

Type	Description
Series:	Datamate J-Tek
Package:	Tray
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board or Cable
Number of Positions:	18
Number of Positions Loaded:	All
Pitch - Mating:	0.079" (2.00mm)
Number of Rows:	3
Row Spacing - Mating:	0.079" (2.00mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Screw Lock
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	12.0µin (0.30µm)
Insulation Color:	Black
Insulation Height:	0.330" (8.38mm)
Contact Length - Post:	0.118" (3.00mm)
Operating Temperature:	-55°C ~ 125°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Gold
Mated Stacking Heights:	10.65mm
Ingress Protection:	-
Features:	Jackscrews, Mating Flange, Mounting Flange
Current Rating (Amps):	-
Voltage Rating:	120V
