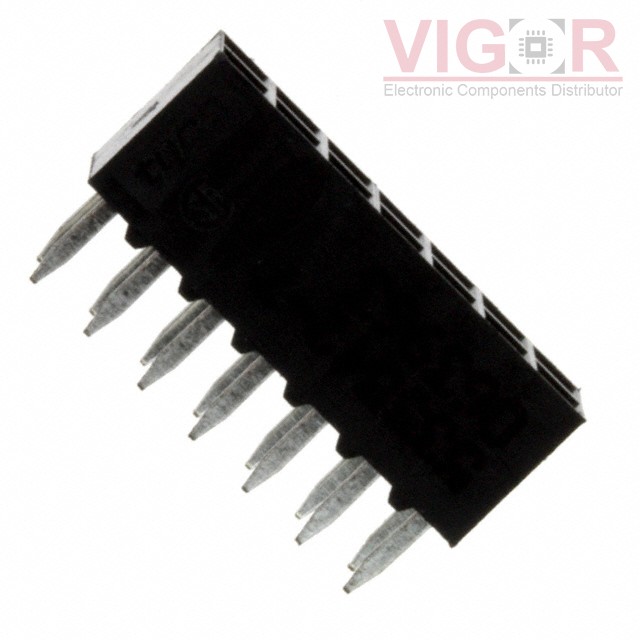

535585-7

Part No :: 535585-7

Manufacturer: TE Connectivity AMP Connectors

Description: CONN RCPT 14POS 0.1 TIN-LEAD PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: 535585-7 PDF

Availability: 0 pieces

Current price of 535585-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

535585-7 Specifications

Type	Description
Series:	AMPMODU Mod IV
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board or Cable
Number of Positions:	14
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Tin-Lead
Contact Finish Thickness - Mating:	100.0µin (2.54µm)
Insulation Color:	Black
Insulation Height:	0.265" (6.73mm)
Contact Length - Post:	0.125" (3.18mm)
Operating Temperature:	-65°C ~ 125°C
Material Flammability Rating:	-
Contact Finish - Post:	Tin-Lead
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	2A
Voltage Rating:	-
