SMM-107-01-S-D

SMM-107-01-S-D

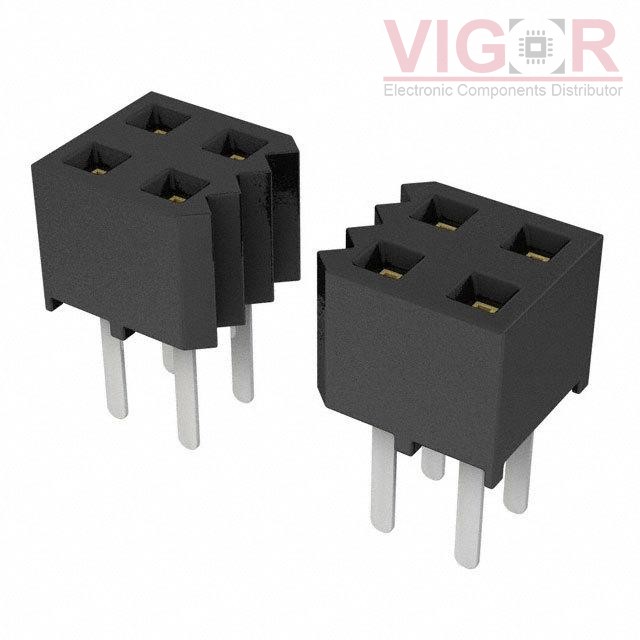

Image is for reference,
please contact us to get the real picture

Part No :

SMM-107-01-S-D

Manufacturer
Samtec, Inc.
Description
CONN RCPT 14POS 0.079 GOLD PCB
Catalog
Rectangular Connectors - Headers, Receptacles, Female Sockets
Shipped from
HK warehouse
Expected Shipping Date
Nov 05 - Nov 09 2025
DataSheet
SMM-107-01-S-D PDF
Availability
111 pieces
Unit Price
$5.13000

Current price of SMM-107-01-S-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMM-107-01-S-D Specifications
Type Description
Series:Tiger Eye™ SMM
Package:Tube
Part Status:Active
Connector Type:Receptacle
Contact Type:Female Socket
Style:Board to Board or Cable
Number of Positions:14
Number of Positions Loaded:All
Pitch - Mating:0.079" (2.00mm)
Number of Rows:2
Row Spacing - Mating:0.079" (2.00mm)
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Insulation Color:Black
Insulation Height:0.140" (3.56mm)
Contact Length - Post:0.120" (3.05mm)
Operating Temperature:-55°C ~ 125°C
Material Flammability Rating:UL94 V-0
Contact Finish - Post:Tin
Mated Stacking Heights:-
Ingress Protection:-
Features:-
Current Rating (Amps):3.2A per Contact
Voltage Rating:350VAC
