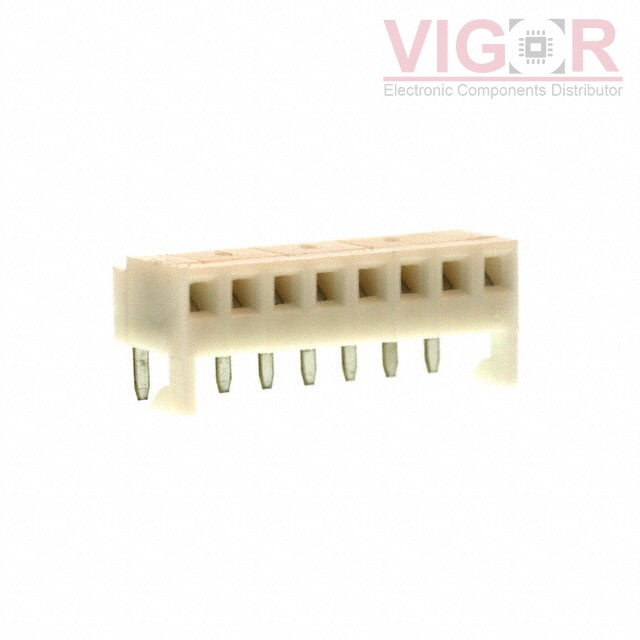

| Type | Description |
|---|---|
| Series: | KK254, 4455 |
| Package: | Tray |
| Part Status: | Active |
| Connector Type: | Receptacle |
| Contact Type: | Non-Gendered |
| Style: | Board to Board or Cable |
| Number of Positions: | 8 |
| Number of Positions Loaded: | All |
| Pitch - Mating: | 0.100" (2.54mm) |
| Number of Rows: | 1 |
| Row Spacing - Mating: | - |
| Mounting Type: | Board Edge, Through Hole, Right Angle |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Finish - Mating: | Tin |
| Contact Finish Thickness - Mating: | 100.0µin (2.54µm) |
| Insulation Color: | White |
| Insulation Height: | 0.185" (4.70mm) |
| Contact Length - Post: | 0.132" (3.35mm) |
| Operating Temperature: | -40°C ~ 80°C |
| Material Flammability Rating: | UL94 V-0 |
| Contact Finish - Post: | Tin |
| Mated Stacking Heights: | - |
| Ingress Protection: | - |
| Features: | Board Hooks |
| Current Rating (Amps): | 2.5A |
| Voltage Rating: | 250VAC |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 10 | ||
| 100 | ||
| 500 | ||
| 1000 | ||
| 5000 | ||
| 10000 |
Current price of 0022152086 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

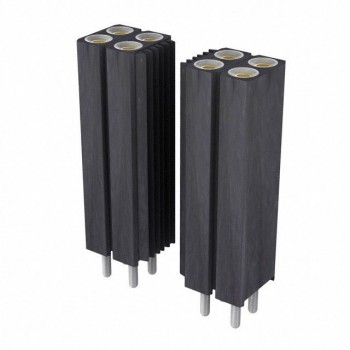

CONN SOCKET 16POS 0.1 GOLD PCB
