SSW-117-01-T-D

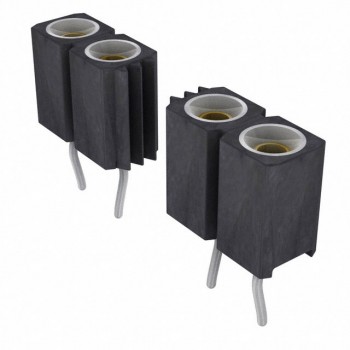

Image is for reference,
please contact us to get the real picture

Part No :: SSW-117-01-T-D

Manufacturer: Samtec, Inc.

Description: CONN RCPT 34POS 0.1 TIN PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: SSW-117-01-T-D PDF

Availability: 343 pieces

Unit Price: ~~$2.70000~~

Current price of SSW-117-01-T-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SSW-117-01-T-D Specifications

Type	Description
Series:	SSW
Package:	Bulk
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Forked
Style:	Board to Board or Cable
Number of Positions:	34
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Insulation Color:	Black
Insulation Height:	0.335" (8.51mm)
Contact Length - Post:	0.104" (2.64mm)
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	5.7A per Contact
Voltage Rating:	-
