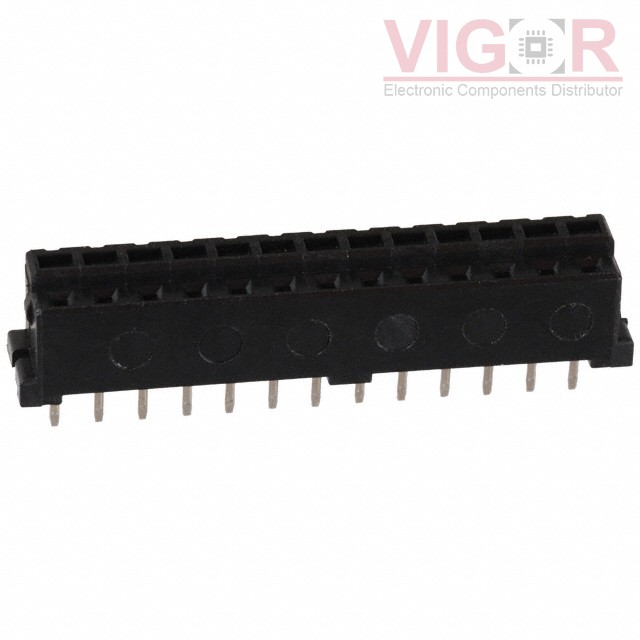

DF3-13S-2DSA(20)

Part No :: DF3-13S-2DSA(20)

Manufacturer: Hirose

VIGOR # :: 4675018

Description: CONN RCPT 13POS 0.079 TIN PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: DF3-13S-2DSA(20) PDF

Country of origin: -

Date code: -

DF3-13S-2DSA(20) Specifications

Type	Description
Series:	DF3
Package:	Tube
Part Status:	Obsolete
Connector Type:	Receptacle
Contact Type:	Female Socket
Style:	Board to Board or Cable
Number of Positions:	13
Number of Positions Loaded:	All
Pitch - Mating:	0.079" (2.00mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Friction Lock
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Insulation Color:	Black
Insulation Height:	0.232" (5.90mm)
Contact Length - Post:	0.118" (3.00mm)
Operating Temperature:	-30°C ~ 85°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	6.6mm, 7.5mm
Ingress Protection:	-
Features:	-
Current Rating (Amps):	3A
Voltage Rating:	30VAC
