RL01S-R16P-HE

Part No :: RL01S-R16P-HE

Manufacturer: JAE Electronics

VIGOR # :: 4679477

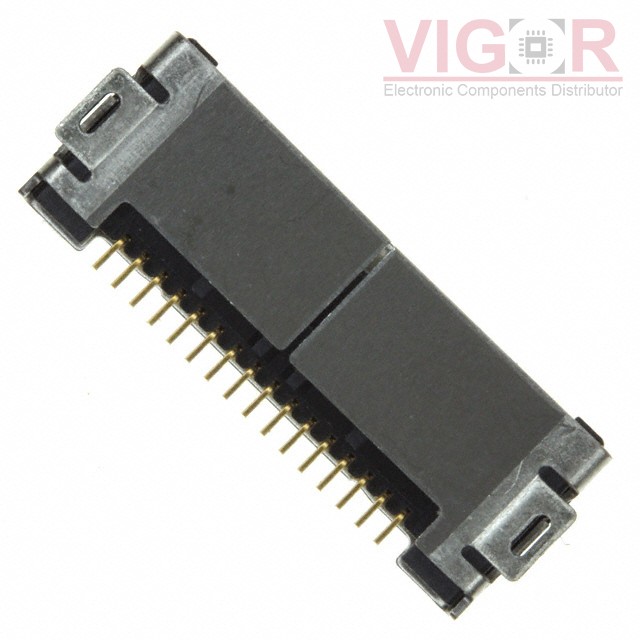

Description: CONN RCPT 16P 0.031 GOLD SMD R/A

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: RL01S-R16P-HE PDF

Country of origin: -

Date code: -

RL01S-R16P-HE Specifications

Type	Description
Series:	RL01/RL01S/RL02S
Package:	Tray
Part Status:	Obsolete
Connector Type:	Receptacle
Contact Type:	Center Strip Contact
Style:	Board to Cable/Wire
Number of Positions:	16
Number of Positions Loaded:	All
Pitch - Mating:	0.031" (0.80mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Friction Lock
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Insulation Color:	-
Insulation Height:	0.114" (2.90mm)
Contact Length - Post:	-
Operating Temperature:	-
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	Tin
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	Shielded, Solder Retention
Current Rating (Amps):	-
Voltage Rating:	-
