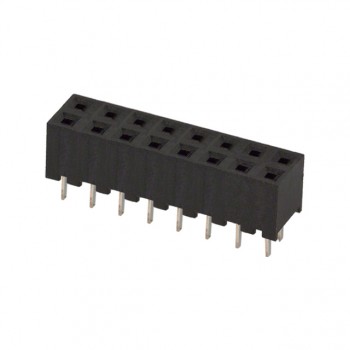

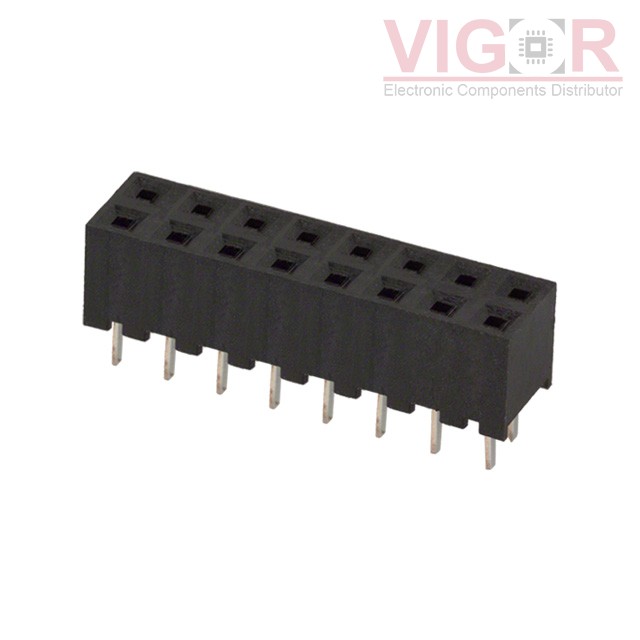

| Type | Description |
|---|---|
| Series: | A3 |
| Package: | Bulk |
| Part Status: | Obsolete |
| Connector Type: | Receptacle |
| Contact Type: | Female Socket |
| Style: | Board to Board or Cable |
| Number of Positions: | 16 |
| Number of Positions Loaded: | All |
| Pitch - Mating: | 0.079" (2.00mm) |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.079" (2.00mm) |
| Mounting Type: | Through Hole |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | 8.00µin (0.203µm) |
| Insulation Color: | Black |
| Insulation Height: | 0.165" (4.20mm) |
| Contact Length - Post: | 0.050" (1.27mm) |
| Operating Temperature: | -55°C ~ 85°C |
| Material Flammability Rating: | UL94 V-0 |
| Contact Finish - Post: | Tin |
| Mated Stacking Heights: | 5.1mm, 6mm |
| Ingress Protection: | - |
| Features: | - |
| Current Rating (Amps): | 1A |
| Voltage Rating: | 200VAC |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of A3D-16DA-2DSE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
