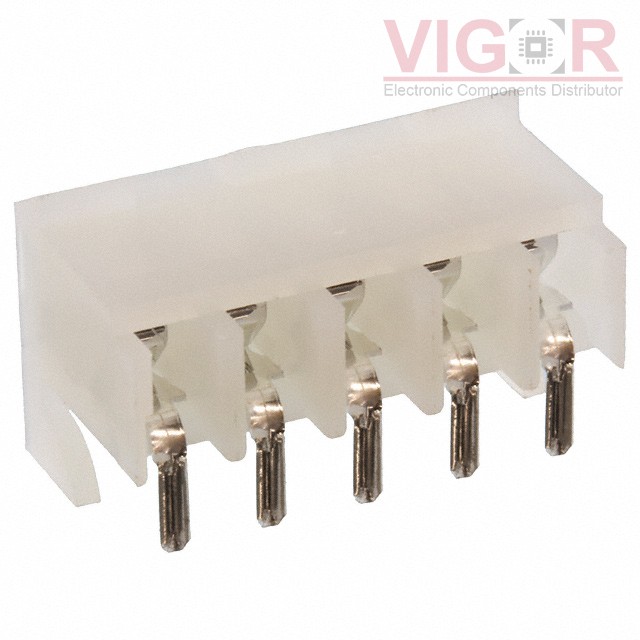

| Type | Description |
|---|---|
| Series: | KK396, 2145 |
| Package: | Tray |
| Part Status: | Obsolete |
| Connector Type: | Receptacle |
| Contact Type: | Female Socket |
| Style: | Board to Board or Cable |
| Number of Positions: | 5 |
| Number of Positions Loaded: | All |
| Pitch - Mating: | 0.156" (3.96mm) |
| Number of Rows: | 1 |
| Row Spacing - Mating: | - |
| Mounting Type: | Board Edge, Through Hole, Right Angle |
| Termination: | Solder |
| Fastening Type: | Locking Ramp |
| Contact Finish - Mating: | Tin |
| Contact Finish Thickness - Mating: | 60.0µin (1.52µm) |
| Insulation Color: | White |
| Insulation Height: | 0.308" (7.82mm) |
| Contact Length - Post: | 0.145" (3.68mm) |
| Operating Temperature: | -40°C ~ 105°C |
| Material Flammability Rating: | UL94 V-2 |
| Contact Finish - Post: | Tin |
| Mated Stacking Heights: | - |
| Ingress Protection: | - |
| Features: | Board Hooks |
| Current Rating (Amps): | 5A |
| Voltage Rating: | 600V |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of 0009521056 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

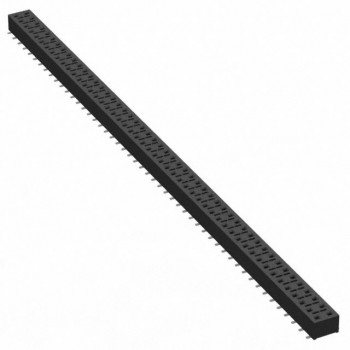

CONN RCPT 100POS 0.1 GOLD SMD
