| Type | Description |
|---|---|
| Series: | 956 |
| Package: | Tape & Reel (TR)Cut Tape (CT) |
| Part Status: | Obsolete |
| Connector Type: | Receptacle, Bottom or Top Entry |
| Contact Type: | Female Socket |
| Style: | Board to Board |
| Number of Positions: | 12 |
| Number of Positions Loaded: | All |
| Pitch - Mating: | 0.079" (2.00mm) |
| Number of Rows: | 2 |
| Row Spacing - Mating: | 0.079" (2.00mm) |
| Mounting Type: | Surface Mount |
| Termination: | Solder |
| Fastening Type: | Push-Pull |
| Contact Finish - Mating: | Gold |
| Contact Finish Thickness - Mating: | Flash |
| Insulation Color: | Black |
| Insulation Height: | 0.110" (2.79mm) |
| Contact Length - Post: | - |
| Operating Temperature: | -40°C ~ 105°C |
| Material Flammability Rating: | UL94 V-0 |
| Contact Finish - Post: | Tin |
| Mated Stacking Heights: | - |
| Ingress Protection: | - |
| Features: | Pick and Place |
| Current Rating (Amps): | 1A |
| Voltage Rating: | 1000VDC |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of 956212-2000-AR-PR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
CONN RCPT 54POS 0.1 GOLD PCB R/A
CONN RCPT 22POS 0.1 GOLD PCB

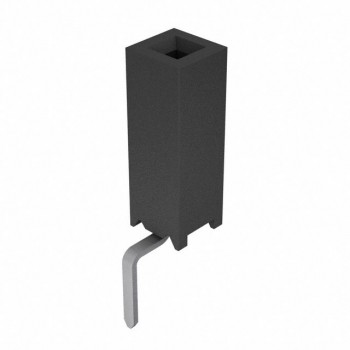

CONN RCPT 1POS GOLD PCB
