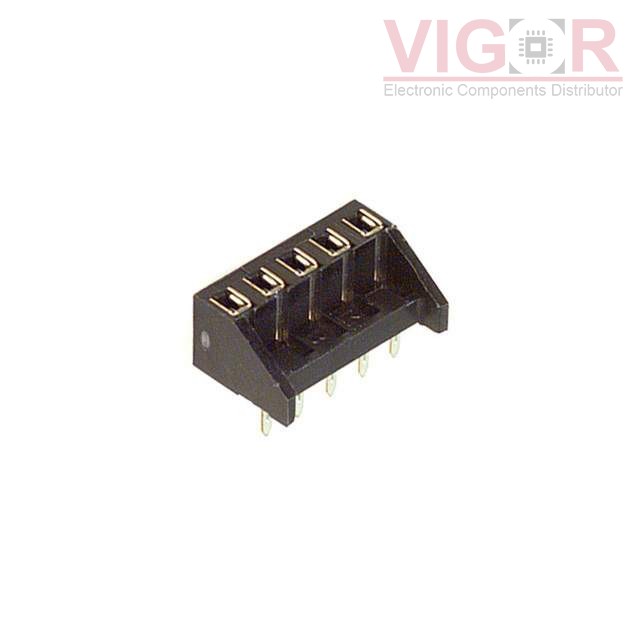

MDF7-5S-2.54DSA

Part No :: MDF7-5S-2.54DSA

Manufacturer: Hirose

VIGOR # :: 4691462

Description: CONN RCPT 5POS 0.1 TIN PCB

Catalog: Rectangular Connectors - Headers, Receptacles, Female Sockets

DataSheet: MDF7-5S-2.54DSA PDF

Country of origin: -

Date code: -

MDF7-5S-2.54DSA Specifications

Type	Description
Series:	MDF7
Package:	Bulk
Part Status:	Obsolete
Connector Type:	Receptacle, Bottom Entry
Contact Type:	Female Socket
Style:	Board to Board
Number of Positions:	5
Number of Positions Loaded:	All
Pitch - Mating:	0.100" (2.54mm)
Number of Rows:	1
Row Spacing - Mating:	-
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	39.4µin (1.00µm)
Insulation Color:	Black
Insulation Height:	0.197" (5.00mm)
Contact Length - Post:	0.118" (3.00mm)
Operating Temperature:	-35°C ~ 85°C
Material Flammability Rating:	UL94 V-0
Contact Finish - Post:	-
Mated Stacking Heights:	-
Ingress Protection:	-
Features:	-
Current Rating (Amps):	3A
Voltage Rating:	250VAC

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Oct 12 - Oct 16 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of MDF7-5S-2.54DSA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
