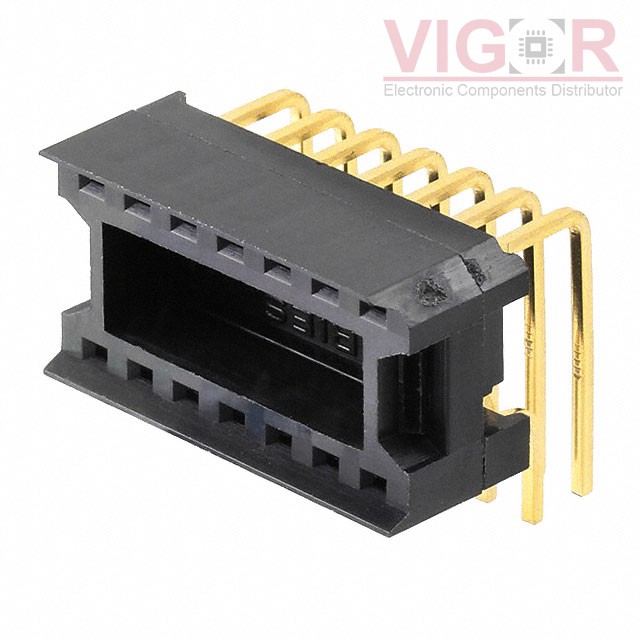

14-820-90

Part No :: 14-820-90

Manufacturer: Aries Electronics, Inc.

Description: CONN IC DIP SOCKET 14POS GOLD

Catalog: Sockets for ICs, Transistors

DataSheet: 14-820-90 PDF

Availability: 0 pieces

Unit Price: ~~$7.93533~~

Current price of 14-820-90 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

14-820-90 Specifications

Type	Description
Series:	Vertisockets™ 800
Package:	Bulk
Part Status:	Active
Type:	DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid):	14 (2 x 7)
Pitch - Mating:	0.100" (2.54mm)
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Material - Mating:	Phosphor Bronze
Mounting Type:	Through Hole, Right Angle, Horizontal
Features:	Closed Frame
Termination:	Solder
Pitch - Post:	0.100" (2.54mm)
Contact Finish - Post:	Gold
Contact Finish Thickness - Post:	10.0µin (0.25µm)
Contact Material - Post:	Phosphor Bronze
Housing Material:	Polyamide (PA46), Nylon 4/6
Operating Temperature:	-

Please confirm the specifications of the products when ordering.
