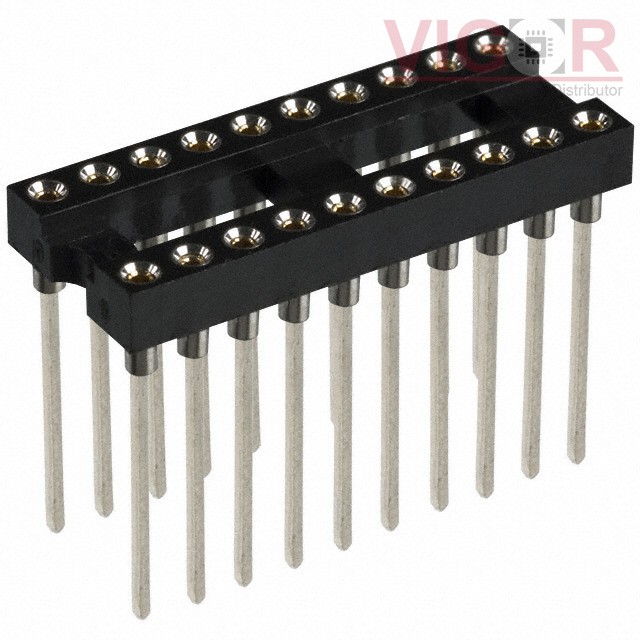

AR20-HZW/T

Product image
Product thumb
Part No :

AR20-HZW/T

Manufacturer
ASSMANN WSW Components
VIGOR # :

4712247

Description
CONN IC DIP SOCKET 20POS GOLD
Catalog
Sockets for ICs, Transistors
DataSheet
AR20-HZW/T PDF
Country of origin
-
Date code
-
ads
AR20-HZW/T Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Type:DIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid):20 (2 x 10)
Pitch - Mating:0.100" (2.54mm)
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Material - Mating:Beryllium Copper
Mounting Type:Through Hole
Features:Open Frame
Termination:Wire Wrap
Pitch - Post:0.100" (2.54mm)
Contact Finish - Post:Tin
Contact Finish Thickness - Post:200.0µin (5.08µm)
Contact Material - Post:Beryllium Copper
Housing Material:Thermoplastic, Polyester
Operating Temperature:-40°C ~ 105°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Jan 02 - Jan 06 2026
Pricing(USD)
Quantity Unit Price Ext. Price

Current price of AR20-HZW/T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
643647-1

643647-1

CONN SOCKET SIP 15POS TIN

A48-LC-TR

A48-LC-TR

CONN IC DIP SOCKET 48POS TIN

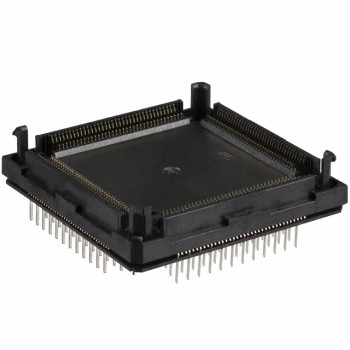

2-822114-3
