1571541-4

Part No :: 1571541-4

Manufacturer: TE Connectivity AMP Connectors

VIGOR # :: 4712325

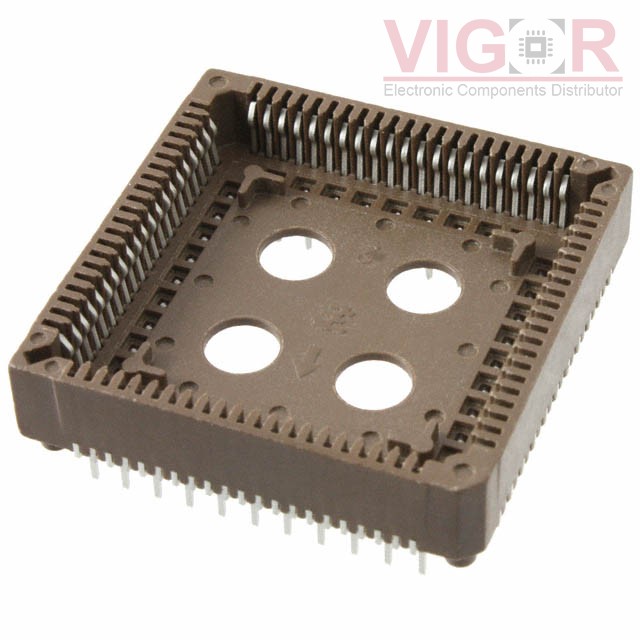

Description: CONN SOCKET PLCC 84POS TIN

Catalog: Sockets for ICs, Transistors

DataSheet: 1571541-4 PDF

Country of origin: -

Date code: -

1571541-4 Specifications

Type	Description
Series:	PCS
Package:	Bulk
Part Status:	Obsolete
Type:	PLCC
Number of Positions or Pins (Grid):	84 (4 x 21)
Pitch - Mating:	0.100" (2.54mm)
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	180.0µin (4.57µm)
Contact Material - Mating:	Copper Alloy
Mounting Type:	Through Hole
Features:	Closed Frame
Termination:	Solder
Pitch - Post:	0.100" (2.54mm)
Contact Finish - Post:	Tin
Contact Finish Thickness - Post:	180.0µin (4.57µm)
Contact Material - Post:	Copper Alloy
Housing Material:	Polyphenylene Sulfide (PPS)
Operating Temperature:	-
