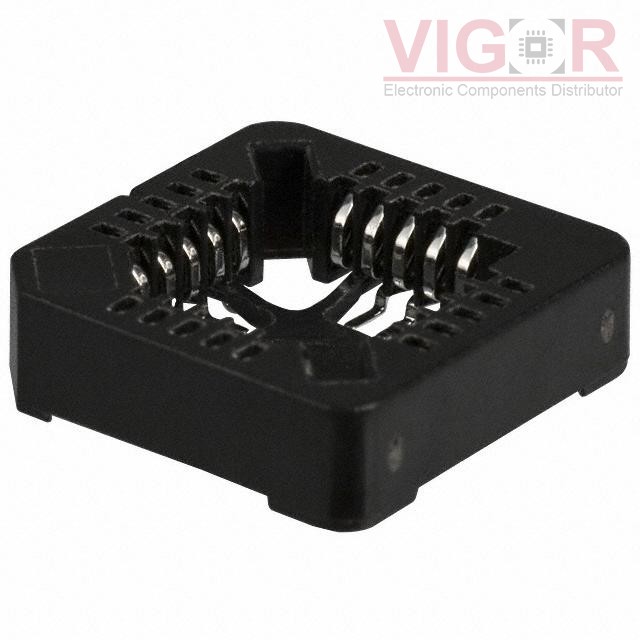

A-CCS20-Z-SM-R

Part No :: A-CCS20-Z-SM-R

Manufacturer: ASSMANN WSW Components

Description: CONN SOCKET PLCC 20POS TIN

Catalog: Sockets for ICs, Transistors

DataSheet: A-CCS20-Z-SM-R PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of A-CCS20-Z-SM-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

A-CCS20-Z-SM-R Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Type:	PLCC
Number of Positions or Pins (Grid):	20 (4 x 5)
Pitch - Mating:	0.050" (1.27mm)
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	150.0µin (3.81µm)
Contact Material - Mating:	Phosphor Bronze
Mounting Type:	Surface Mount
Features:	Closed Frame
Termination:	Solder
Pitch - Post:	0.050" (1.27mm)
Contact Finish - Post:	Tin
Contact Finish Thickness - Post:	150.0µin (3.81µm)
Contact Material - Post:	Phosphor Bronze
Housing Material:	Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature:	-55°C ~ 105°C
