822064-4

Part No :: 822064-4

Manufacturer

VIGOR # :: 4712573

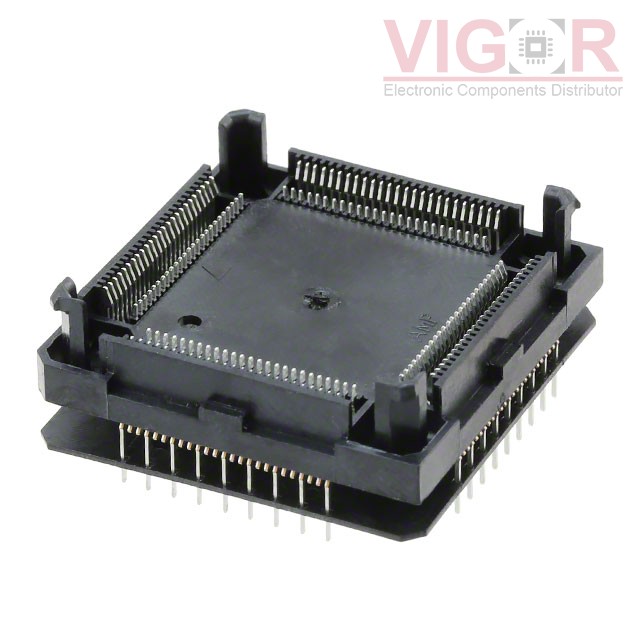

Description: CONN SOCKET PQFP 100POS TIN-LEAD

Catalog: Sockets for ICs, Transistors

DataSheet: 822064-4 PDF

Country of origin: -

Date code: -

822064-4 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Type:	QFP
Number of Positions or Pins (Grid):	100 (4 x 25)
Pitch - Mating:	0.025" (0.64mm)
Contact Finish - Mating:	Tin-Lead
Contact Finish Thickness - Mating:	200.0µin (5.08µm)
Contact Material - Mating:	Phosphor Bronze
Mounting Type:	Through Hole
Features:	Closed Frame
Termination:	Solder
Pitch - Post:	0.025" (0.64mm)
Contact Finish - Post:	Tin-Lead
Contact Finish Thickness - Post:	200.0µin (5.08µm)
Contact Material - Post:	Phosphor Bronze
Housing Material:	Liquid Crystal Polymer (LCP)
Operating Temperature:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Apr 11 - Apr 15 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of 822064-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

AR16-HZL-TT

CONN IC DIP SOCKET 16POS TIN

2-641616-1

CONN IC DIP SOCKET 40POS TIN

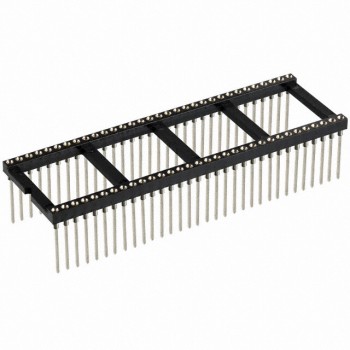

AR64-HZW/T-R
