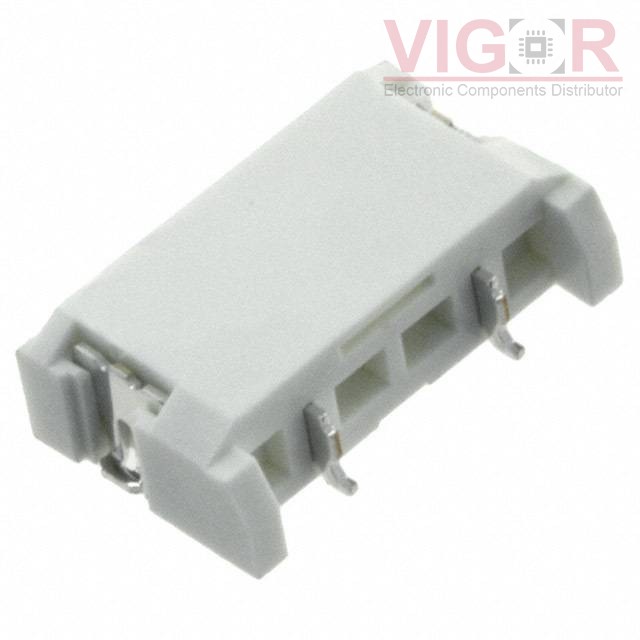

02R-LEBSS-TB(LF)(SN)

Part No :: 02R-LEBSS-TB(LF)(SN)

Manufacturer: JST

VIGOR # :: 3338030

Description: CONN SSL RCPT 2POS 4MM SOLDER

Catalog: Solid State Lighting Connectors

DataSheet: 02R-LEBSS-TB(LF)(SN) PDF

Country of origin: -

Date code: -

02R-LEBSS-TB(LF)(SN) Specifications

Type	Description
Series:	LEB
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Style:	Board to Board or Cable
Connector Type:	Receptacle
Number of Positions:	2
Mounting Type:	Surface Mount, Right Angle
Termination:	Solder
Pitch:	0.157" (4.00mm)
Fastening Type:	-
Features:	Solder Retention
Housing Color:	White
Wire Gauge:	-
Contact Material:	Copper Alloy
Contact Finish:	Tin
Housing Material:	Polyamide (PA9T), Nylon 9T
Operating Temperature:	-55°C ~ 105°C

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Aug 08 - Aug 12 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.5400~~	~~$0.54~~
2000	~~$0.2700~~	~~$540.00~~
4000	~~$0.2531~~	~~$1 012.48~~
6000	~~$0.2447~~	~~$1 468.08~~
10000	~~$0.2278~~	~~$2 278.10~~
14000	~~$0.2244~~	~~$3 142.02~~

Current price of 02R-LEBSS-TB(LF)(SN) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
