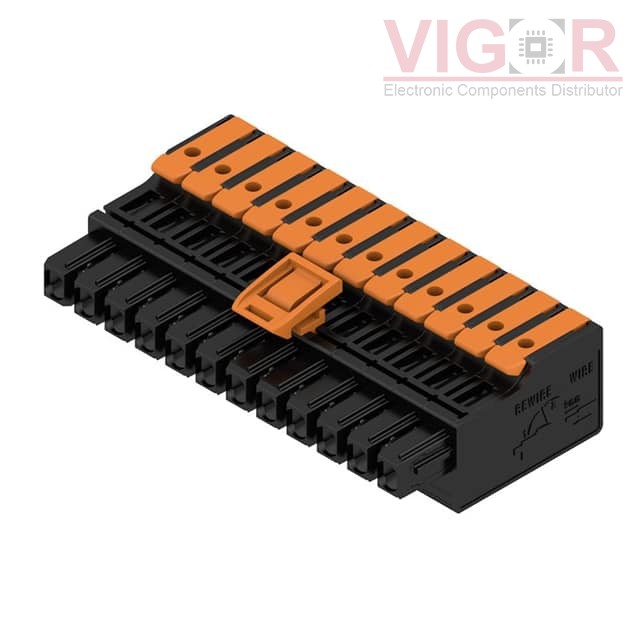

2741770000

Part No :: 2741770000

Manufacturer: Weidmuller

VIGOR # :: 3230004

Description: PCB CONNECTOR, PLUG, 5.00MM PITC

Catalog: Terminal Blocks - Headers, Plugs and Sockets

DataSheet: 2741770000 PDF

Country of origin: -

Date code: -

2741770000 Specifications

Type	Description
Series:	Omnimate 4.0 MPS
Package:	Box
Part Status:	Active
Type:	Plug, Female Sockets
Number of Positions:	12
Positions Per Level:	12
Number of Levels:	1
Pitch:	0.197" (5.00mm)
Header Orientation:	-
Plug Wire Entry:	180°
Termination Style:	Screwless - Snap In
Mounting Type:	Free Hanging (In-Line)
Current - IEC:	-
Voltage - IEC:	400 V
Current - UL:	18.5 A
Voltage - UL:	300 V
Wire Gauge or Range - AWG:	14-18 AWG
Wire Gauge or Range - mm²:	0.5-2.5mm²
Color:	Black
Operating Temperature:	-50°C ~ 100°C
Contact Mating Finish:	Tin
Features:	Latch Lock
