| Type | Description |
|---|---|
| Series: | COMBICON TMSTBP |
| Package: | Bulk |
| Part Status: | Active |

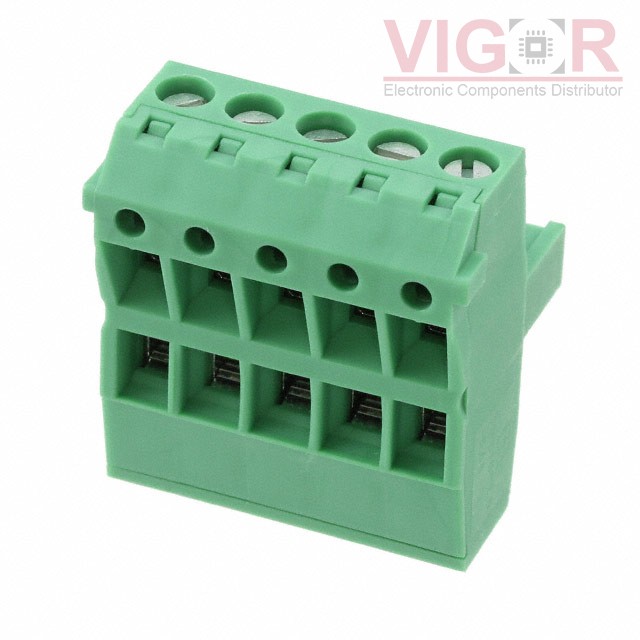

| Type: | Plug, Female Sockets |
| Number of Positions: | 5 |
| Positions Per Level: | 5 (Mate), 10 (Input) |
| Number of Levels: | 1 (Mate), 2 (Input) |
| Pitch: | 0.200" (5.08mm) |
| Header Orientation: | - |
| Plug Wire Entry: | 180° |
| Termination Style: | Screw - Rising Cage Clamp |
| Mounting Type: | Free Hanging (In-Line) |
| Current - IEC: | 12A |
| Voltage - IEC: | 630 V |
| Current - UL: | 15 A |
| Voltage - UL: | 300 V |
| Wire Gauge or Range - AWG: | 12-30 AWG |
| Wire Gauge or Range - mm²: | 0.2-2.5mm² |
| Color: | Green |
| Operating Temperature: | - |
| Contact Mating Finish: | Tin |
| Features: | Retention Latches (Non-Wire Side) |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 10 | ||
| 50 | ||
| 100 | ||
| 250 | ||
| 500 | ||
| 1000 |
Current price of 1853049 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
