ED1100/3

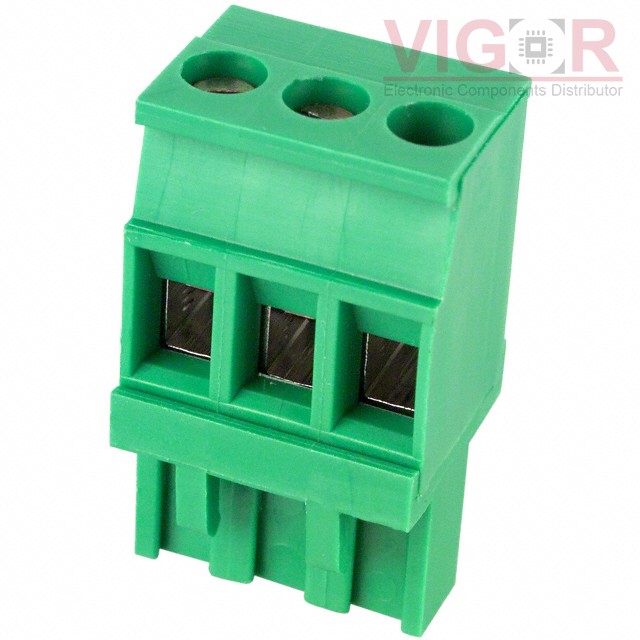

Product image
Product thumb
Part No :

ED1100/3

Manufacturer
On-Shore Technology, Inc.
VIGOR # :

3232609

Description
TERM BLOCK PLUG 3POS 90DEG 5MM
Catalog
Terminal Blocks - Headers, Plugs and Sockets
DataSheet
ED1100/3 PDF
Country of origin
-
Date code
-
ads
ED1100/3 Specifications
Type Description
Series:ED1100
Package:Bulk
Part Status:Active
Type:Plug, Female Sockets
Number of Positions:3
Positions Per Level:3
Number of Levels:1
Pitch:0.197" (5.00mm)
Header Orientation:-
Plug Wire Entry:90°
Termination Style:Screw
Mounting Type:Free Hanging (In-Line)
Current - IEC:-
Voltage - IEC:-
Current - UL:15 A
Voltage - UL:300 V
Wire Gauge or Range - AWG:10-22 AWG
Wire Gauge or Range - mm²:2.5mm²
Color:Green
Operating Temperature:-30°C ~ 105°C
Contact Mating Finish:-
Features:Retention Latches (Wire Side)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Oct 25 - Oct 29 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $3.2800 $3.28
10 $2.5000 $25.00
25 $2.3412 $58.53
50 $2.0810 $104.05
100 $2.0358 $203.58
250 $1.8775 $469.37
500 $1.6965 $848.25
1000 $1.5042 $1 504.23
5000 $1.4138 $7 068.75

Current price of ED1100/3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
