| Type | Description |
|---|---|

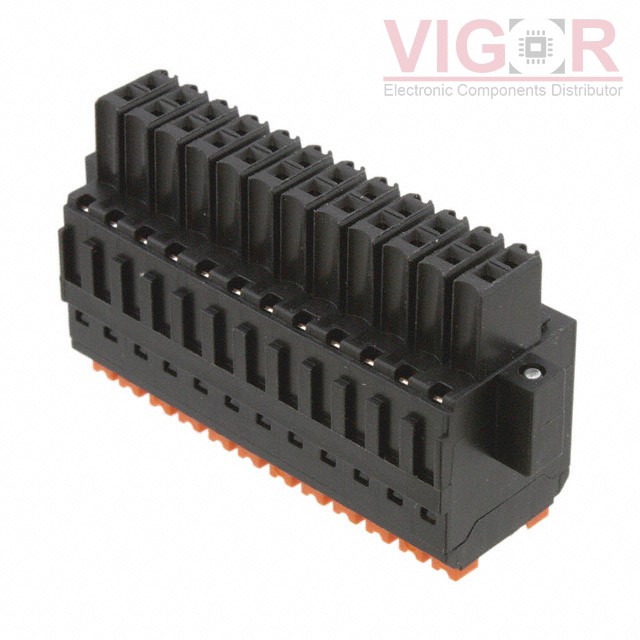

| Series: | Omnimate B2CF |
| Package: | Bulk |
| Part Status: | Active |
| Type: | Plug, Female Sockets |
| Number of Positions: | 24 |
| Positions Per Level: | 12 |
| Number of Levels: | 2 |
| Pitch: | 0.138" (3.50mm) |
| Header Orientation: | - |
| Plug Wire Entry: | 180° |
| Termination Style: | Screwless - Leg Spring, Push-In Spring |
| Mounting Type: | Free Hanging (In-Line) |
| Current - IEC: | 13.4A |
| Voltage - IEC: | 320 V |
| Current - UL: | 9.5 A |
| Voltage - UL: | 300 V |
| Wire Gauge or Range - AWG: | 16-26 AWG |
| Wire Gauge or Range - mm²: | 0.14-1.5mm² |
| Color: | Black |
| Operating Temperature: | -50°C ~ 120°C |
| Contact Mating Finish: | Tin |
| Features: | Mating Flange |
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1 | ||
| 10 | ||
| 25 | ||
| 50 | ||
| 100 | ||
| 250 | ||
| 500 |
Current price of 1277970000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
TERM BLOCK PLUG 6POS STR 3.5MM
TERMINAL BLOCK, PLUGGABLE, 3.81,

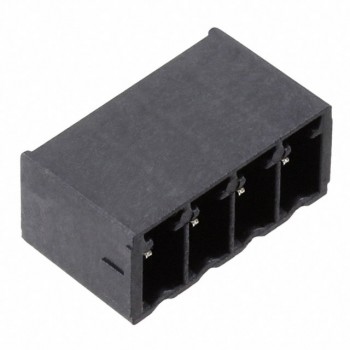

TERM BLOCK HDR 4POS 90DEG 3.5MM
