XW4K-05A1-H1

Part No :: XW4K-05A1-H1

Manufacturer: Omron Electronics Components

VIGOR # :: 3233603

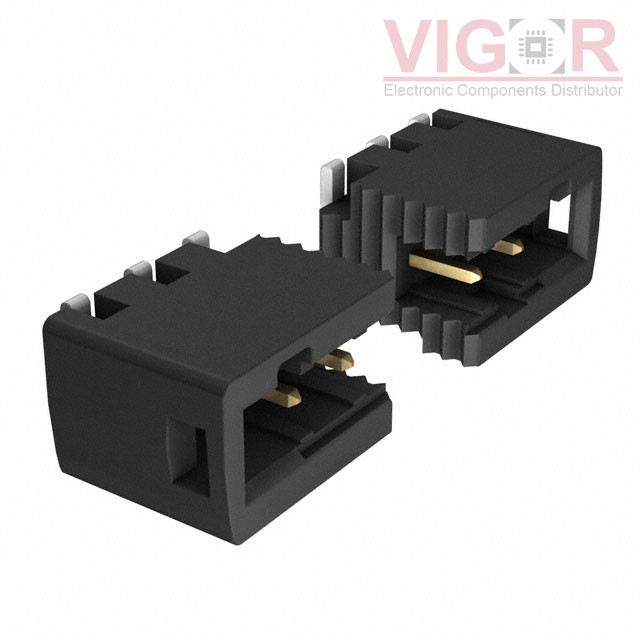

Description: TERM BLOCK HDR 5POS 90DEG 2.54MM

Catalog: Terminal Blocks - Headers, Plugs and Sockets

DataSheet: XW4K-05A1-H1 PDF

Country of origin: -

Date code: -

XW4K-05A1-H1 Specifications

Type	Description
Series:	XW4
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Header, Male Pins, Shrouded (4 Side)
Number of Positions:	5
Positions Per Level:	5
Number of Levels:	1
Pitch:	0.100" (2.54mm)
Header Orientation:	90°, Right Angle
Plug Wire Entry:	-
Termination Style:	Solder
Mounting Type:	Surface Mount
Current - IEC:	-
Voltage - IEC:	-
Current - UL:	6 A
Voltage - UL:	160 V
Wire Gauge or Range - AWG:	20-26 AWG
Wire Gauge or Range - mm²:	0.14 ~ 0.5mm²
Color:	Black
Operating Temperature:	-45°C ~ 125°C
Contact Mating Finish:	Tin
Features:	Board Guide, Latches
