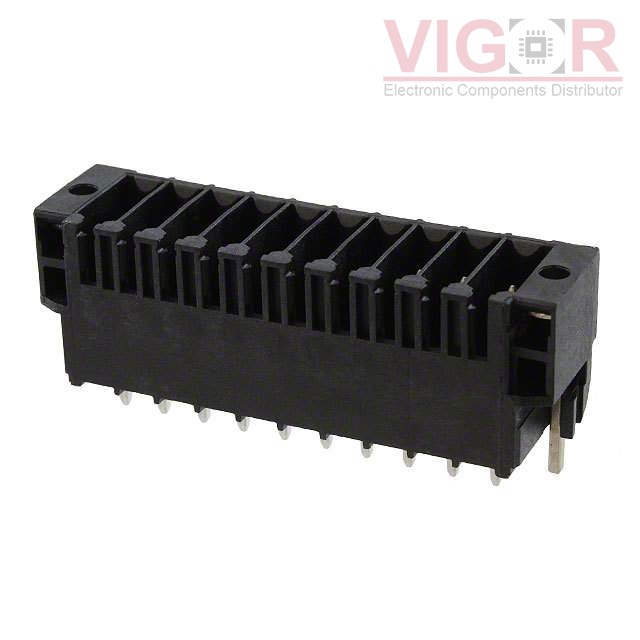

1290310000

Image is for reference,
please contact us to get the real picture

Part No :

1290310000

Manufacturer
Weidmuller
Description
TERM BLOCK HDR 20POS VERT 3.5MM
Catalog
Terminal Blocks - Headers, Plugs and Sockets
Shipped from
HK warehouse
Expected Shipping Date
Oct 14 - Oct 18 2025
DataSheet
1290310000 PDF
Availability
49 pieces
Unit Price
$10.54000

Current price of 1290310000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:Omnimate S2C
Package:Bulk
Part Status:Active
Type:Header, Male Pins, Shrouded (4 Side)
Number of Positions:20
Positions Per Level:10
Number of Levels:2
Pitch:0.138" (3.50mm)
Header Orientation:Vertical
Plug Wire Entry:-
Termination Style:Solder
Mounting Type:Through Hole
Current - IEC:13.4A
Voltage - IEC:200 V
Current - UL:10 A
Voltage - UL:150 V
Wire Gauge or Range - AWG:-
Wire Gauge or Range - mm²:-
Color:Black
Operating Temperature:-50°C ~ 120°C
Contact Mating Finish:Tin
Features:Mating Flange, Solder Retention
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

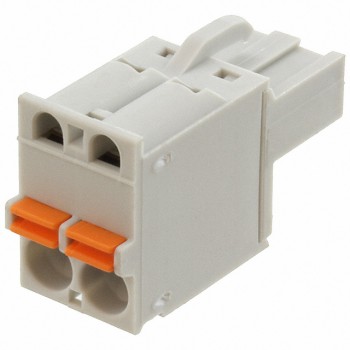

HOT 1751642

1751642

TERM BLOCK PLUG 2POS STR 5MM

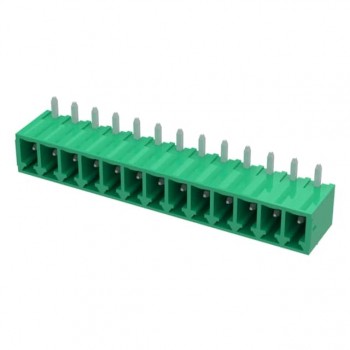

HOT 691322310013

691322310013

3.81 MM TERMINAL BLOCK HEADER, H

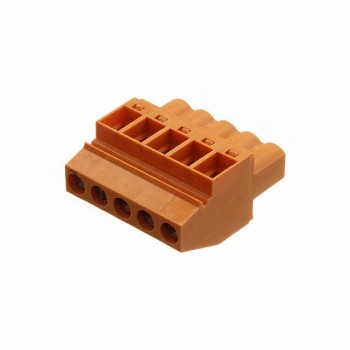

HOT 1557660000
